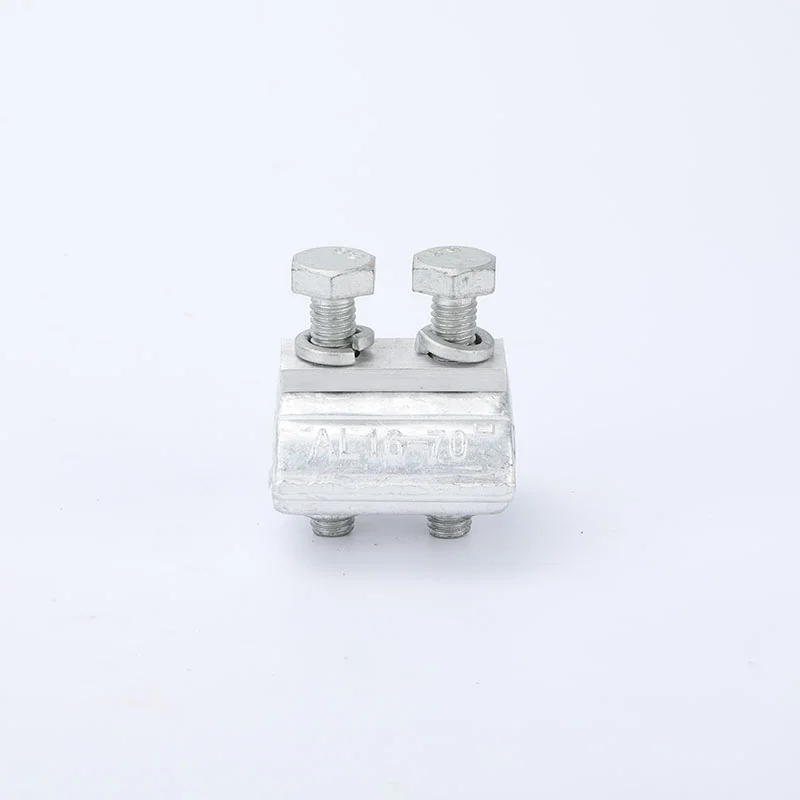

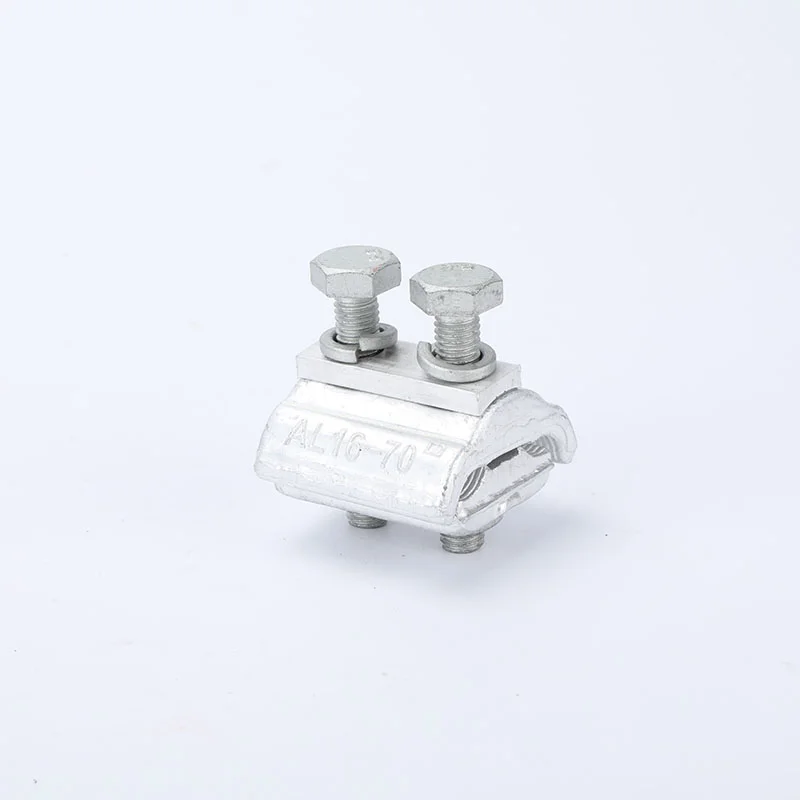

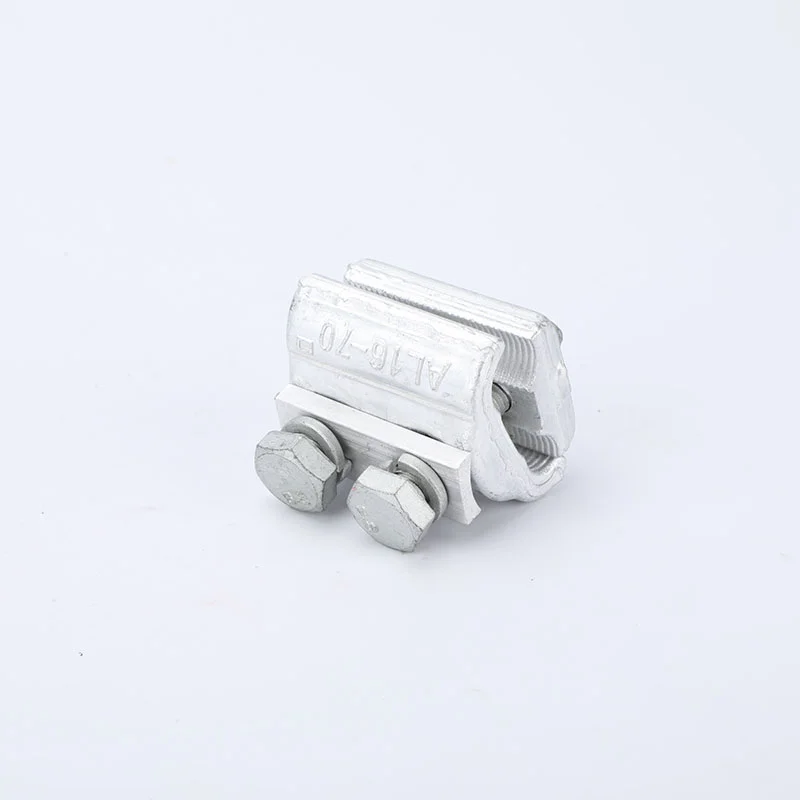

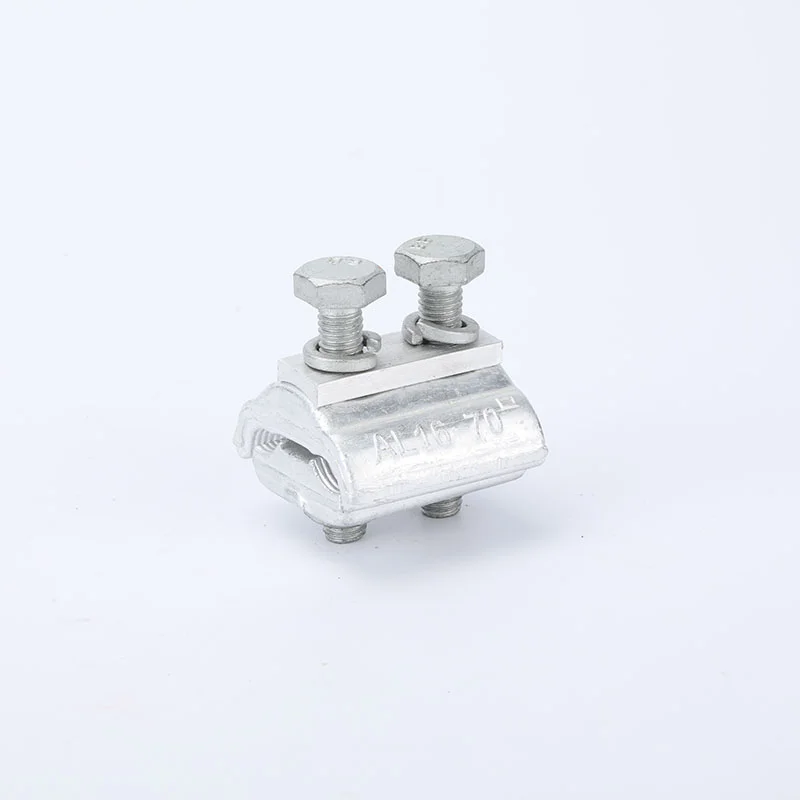

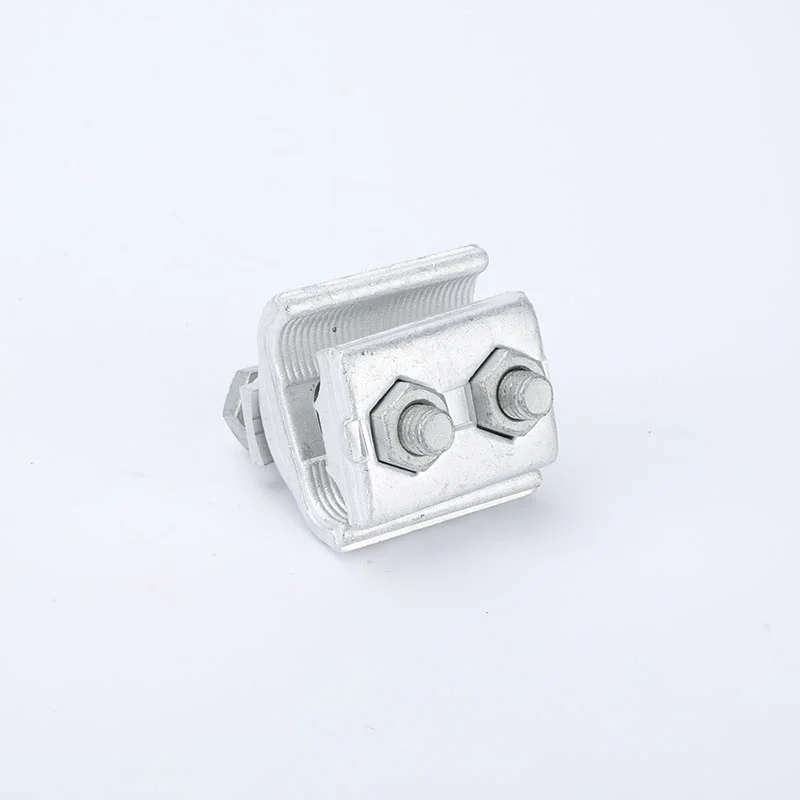

APG-B1 Transformed copper-aluminum butt splicing clamp

Transformed copper-aluminum butt splicing clamp of CAPG type Model Applicable Conductor Range Number of Tightening Bolts L B H M CAPG-A1 Copper Cu6-50mm²,Aluminum A116-70mm² Single bolt 25 42 40 8 CAPG-A2 Copper Cu10-95mm²,Aluminum A125-150mm² Single bolt 30 47 45 8 CAPG-B1 Copper Cu6-50mm²,Aluminum A116-70mm² Double bolts 40 42 45 8 CAPG-B2 Copper Cu10-95mm²,Aluminum A125-150mm² Double […]

Transformed copper-aluminum butt splicing clamp of CAPG type

Model	Applicable Conductor Range	Number of Tightening Bolts	L	B	H	M
CAPG-A1	Copper Cu6-50mm²,Aluminum A116-70mm²	Single bolt	25	42	40	8
CAPG-A2	Copper Cu10-95mm²,Aluminum A125-150mm²	Single bolt	30	47	45	8
CAPG-B1	Copper Cu6-50mm²,Aluminum A116-70mm²	Double bolts	40	42	45	8
CAPG-B2	Copper Cu10-95mm²,Aluminum A125-150mm²	Double bolts	50	46	50	8
CAPG-B3	Copper Cu25-185mm²,Aluminum A135-200mm²	Double bolts	64	58	60	10
CAPG-C	Copper Cu35-240mm²,Aluminum A135-300mm²	Triple bolts	105	65	70	10

Model	Applicable Conductor Range	Number of Tightening Bolts	L	B	H	M
APG-A1	Aluminum Al 16-70 mm²	Single bolt	25	35	40	8
APG-A2	Aluminum Al 16-150 mm²	Single bolt	30	47	45	8
APG-B1	Aluminum Al 16-35 mm²	Double bolts	34	28	35	6
APG-B2	Aluminum Al 16-70 mm²	Double bolts	40	42	45	8
APG-B3	Aluminum Al 16-150 mm²	Double bolts	50	45	50	8
APG-B4	Aluminum Al 25-200 mm²	Double bolts	62	58	60	10
APG-C1	Aluminum Al 25-200 mm²	Triple bolts	93	58	60	10
APG-C2	Aluminum Al 35-300 mm²	Triple bolts	105	65	70	10
