ES14 Bracket Suspension clamp series

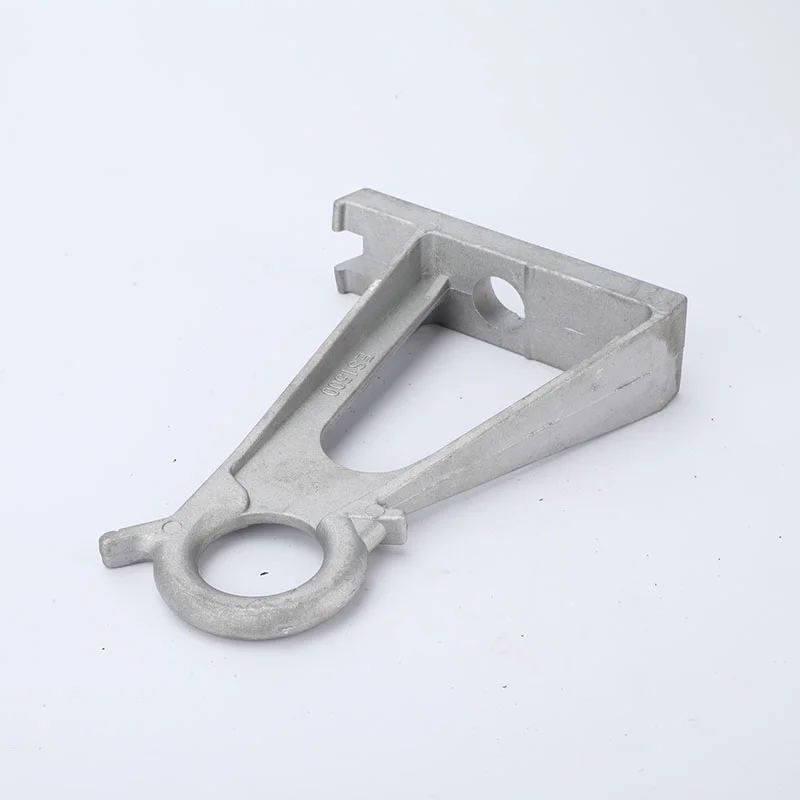

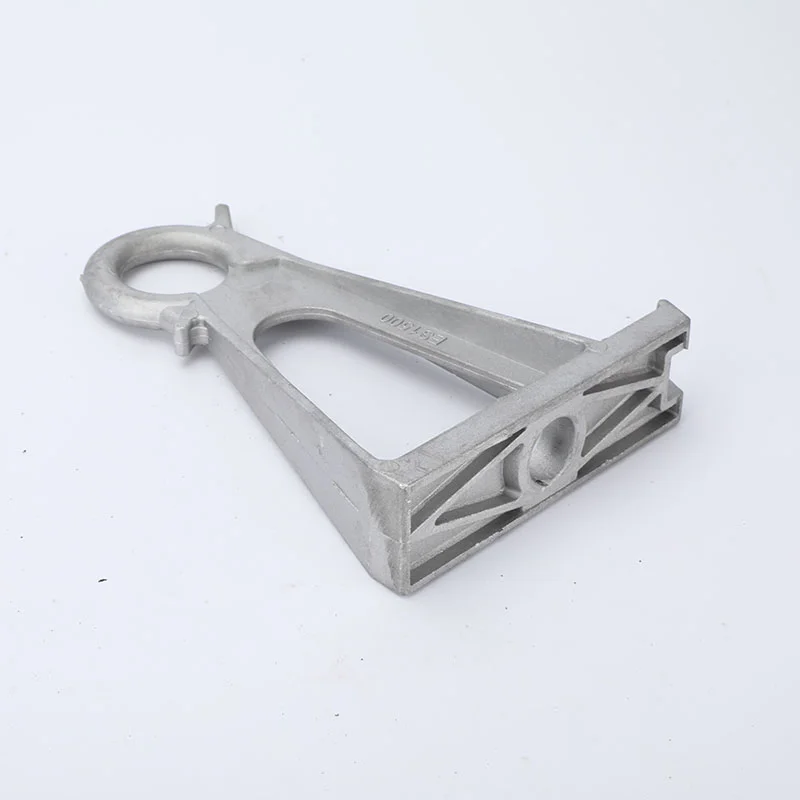

Slim triangular pole bracket with a narrow foot and a taller eye, for pole faces with a close fixing footprint.

  • Model: ES14
  • Product Type: Pole Bracket

ES14 is a slimmer triangular bracket in the same family as CS14. Narrower in the body and with a taller eye, it suits pole faces where the fixing bolts are close together.

Where it is used

It positions a suspension clamp on a pole or wall where the available fixing footprint is small. The narrow foot is what separates it from CS14 — the two are otherwise used for the same job.

How it holds the conductor

Load passes from the eye through the two legs into the foot plate. Because the legs are closer together than on CS14, the bolts sit nearer the pole centre line and the bracket is less exposed to a side pull.

Fixing and installation

Check the bolt spacing against the existing holes before ordering — ES14 and CS14 do not share a footprint, so one does not drop into the other’s holes.

How to Select the Right Model

Confirm when ordering:

ParameterValue
Bolt spacing available on the poleDecides between ES14 and CS14
Fixing surfacePole or wall
Clamp to be carriedState the model
Material and finishConfirmed per order

ES14 and CS14 are not interchangeable on an existing bracket position. Measure the hole centres on the pole and tell us the figure.

Sending an enquiry for ES14

One message with the conductor size, the pole or wall fixing and the quantity is enough for us to come back with the model, the grip value and a price. Drawings are welcome in place of a written description.
