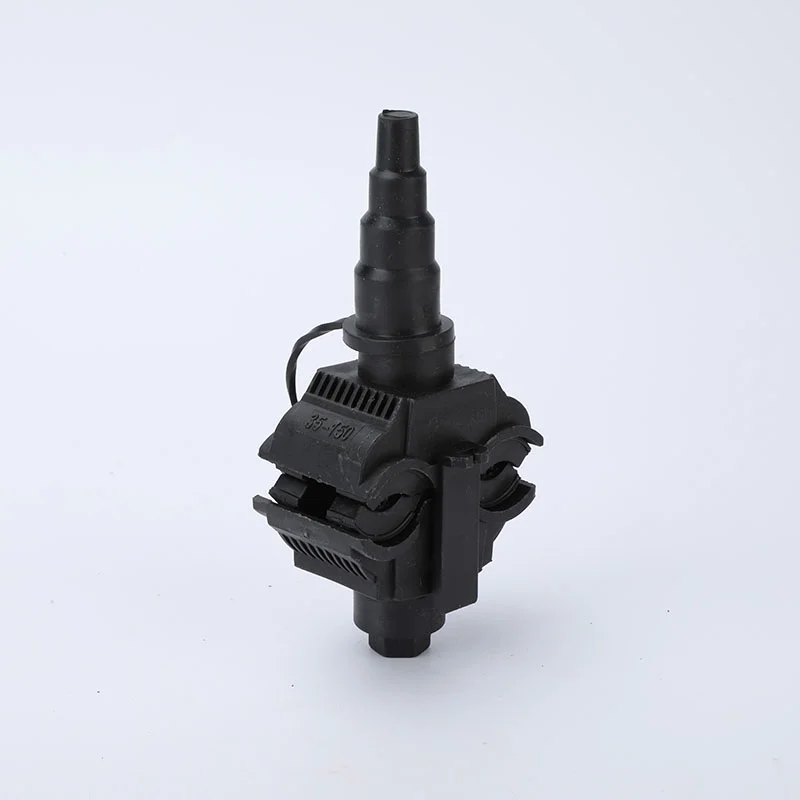

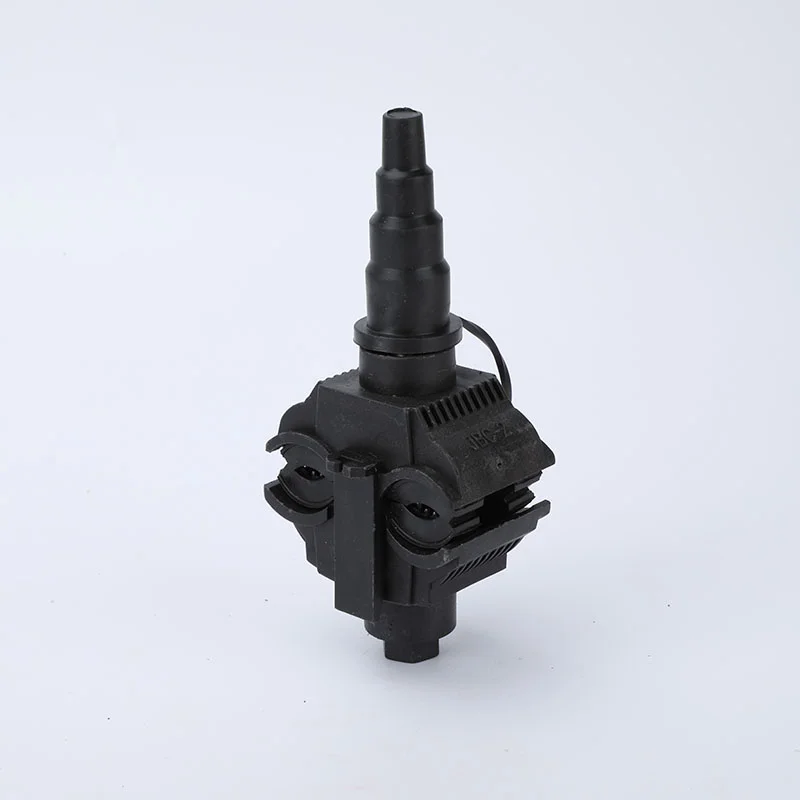

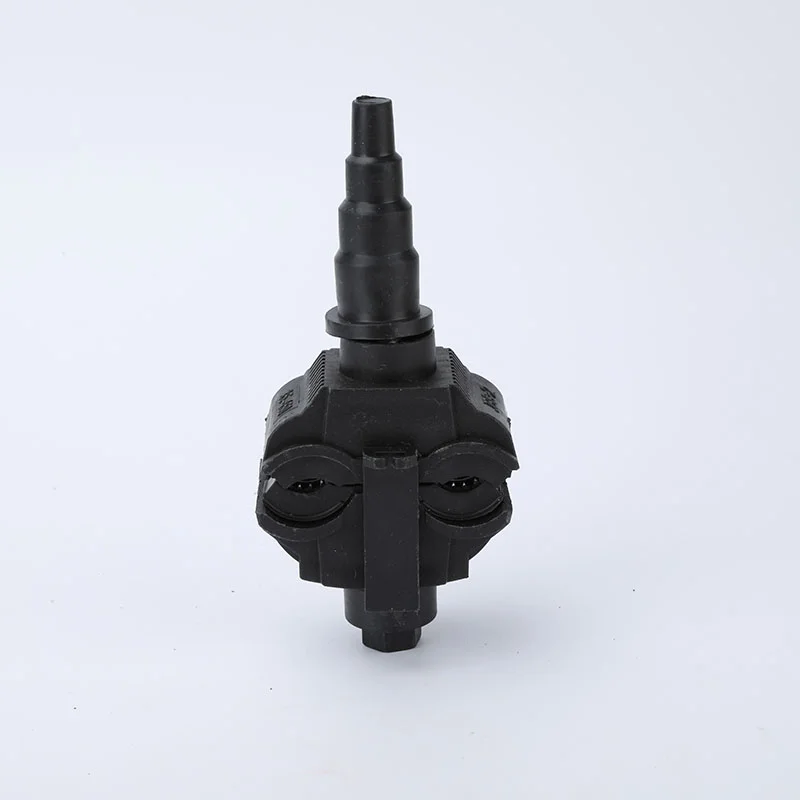

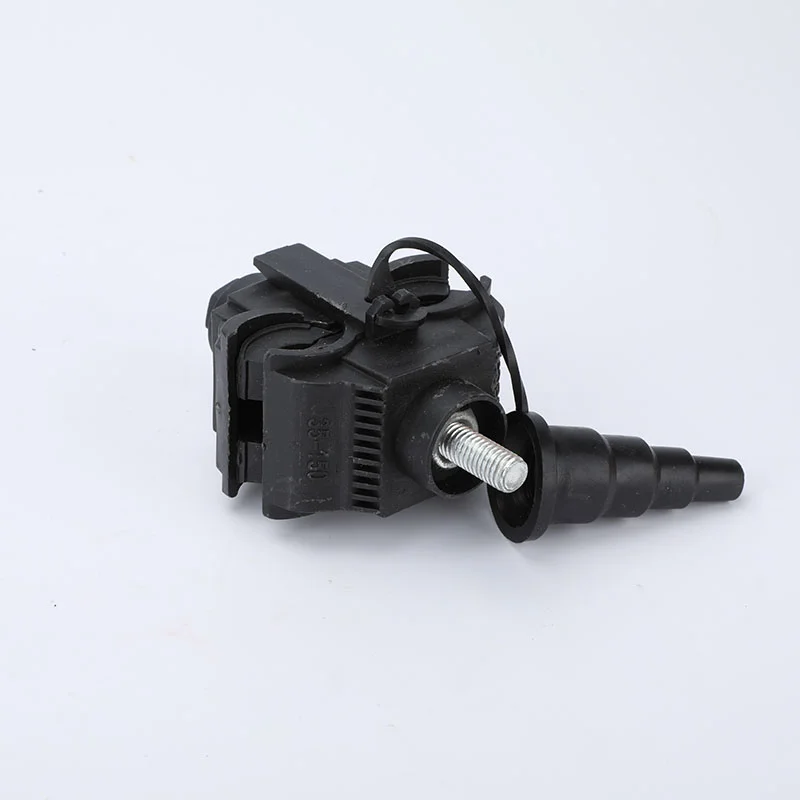

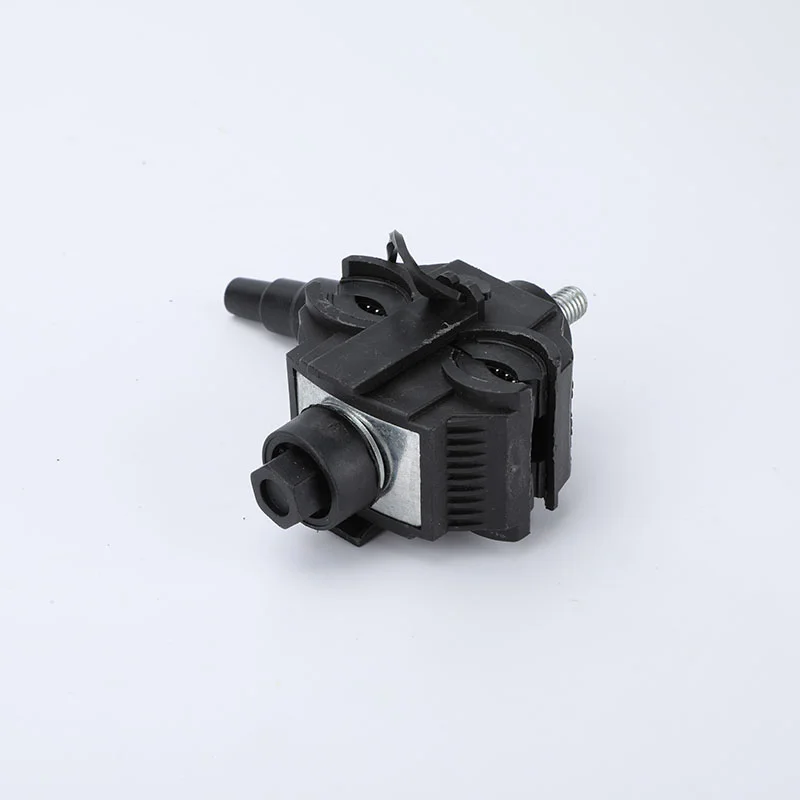

JBC-2 Piercing wire clamp export type series

The JBC-2 insulation piercing connector covers 35-120/35-120 mm² LV-ABC conductors on both sides, sealing against the insulation without stripping. Torque per drawing.

  • Model: JBC-2
  • Product Type: IPC
  • Cross-Section / Cable Range: 35-120/35-120mm²

Product Description

The JBC-2 is an insulation piercing connector (IPC) for branching conductors in low-voltage aerial bundled cable (LV-ABC) networks. Instead of stripping the insulation, the connector uses alloy bolts whose teeth cut through the insulation to reach the conductor, then clamp down on it.

Because the insulation is never removed, no separate joint enclosure or waterproofing tape is needed at the branch point. This shortens installation time on pole-top work and removes one of the common failure points — an exposed joint that admits moisture and corrodes over time.

Install with a calibrated torque wrench. The piercing teeth form a gas-tight seal around both the conductor and the insulation, so the joint stays stable under long-term exposure to moisture, dust and UV.

Technical Specifications

ItemSpecification
ModelJBC-2
Product TypeInsulation Piercing Connector (IPC)
Cross-Section / Cable Range35-120/35-120mm²
Product CategoryAerial Cable Accessories
ManufacturerGGLDF

Tightening torque is not published for this model. Send us the conductor cross-sections and we will confirm the specified torque against the drawing before you order.

How to Select the Right Model

The range above is written as main side / branch side. The first figure is the conductor the connector sits on, the second is the conductor being branched off to. Match both figures to your actual conductors before ordering.

Conductor classModels and ranges
Small conductor — up to 50 mm² on both sidesPC4-35 — 4-35/4-35mm²
PC102 — 6-50/4-25mm²
CD21 — 10-35/2.5-35mm²
Medium conductor — up to 150 mm²EP — 16-95/1.5-16mm²
EP-CT — 16-95/1.5-16mm²
EP-BT — 16-95/1.5-16mm²
SY95 — 16-95/4-50mm²
PC2-150BT — 16-150/4-50mm²
PC101 — 16-95/1.5-10mm²
PC-150-10 — 10-150/1.5-10mm²
CTH35 — 16-95/4-50mm²
CD71 — 35-95/4-70mm²
PC3-95 — 25-95/25-95mm²
JBC-2 — 35-120/35-120mm²
JBC-1 — 35-70/6-35mm²
CPL-150 — 35-150/35-150mm²
CPL-95 — 16-95/16-25mm²
JJC16-150 — 35-150/35-150mm²
JJC2-150 — 50-150/6-50mm²
JJC2-95 — 16-95/4-50mm²
Large conductor — above 150 mm²JJC-6 — 120-240/10-120mm²
JBC-3 — 50-240/50-240mm²

Aluminium conductors: if either side is aluminium, use a bi-metallic bolt — EP-BT. Aluminium and copper react in the presence of moisture, which corrodes the contact face and raises resistance over time.

If your conductors fall outside every range listed above, send us the cross-sections and we will confirm which model fits rather than guess.

Key Advantages

  • No stripping or cutting of insulation required — fewer installation steps on site
  • Gas-tight seal around conductor and insulation; no separate joint enclosure needed
  • Covers 35-120/35-120mm² on both the main and branch side

Typical Applications

  • Branch and tap-off connections in low-voltage aerial bundled cable networks.
  • LV-ABC overhead distribution line installation and maintenance.
  • Branch connections to service drops on distribution poles.
  • Grid extension and rural electrification projects.

Send us the conductor cross-sections, quantity and destination port for a quotation with pricing and lead time. View all insulation piercing connector models →
