PAS-4 Hanging Palm Clip Series

Hanging suspension clamp with a vertical long-eye hanger and a square polymer block that closes around the cable.

  • Model: PAS-4
  • Product Type: Suspension Clamp

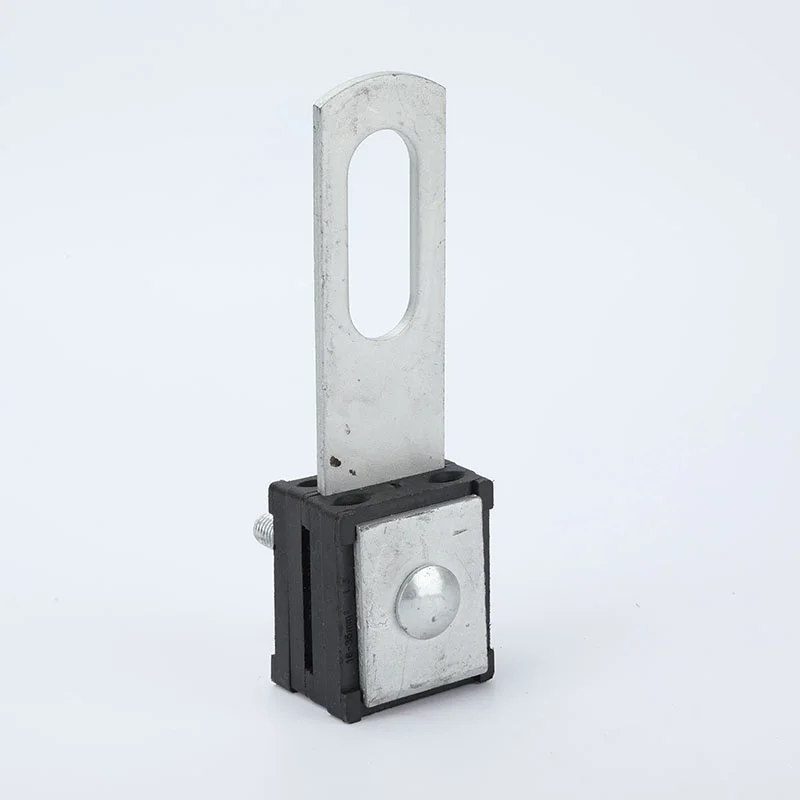

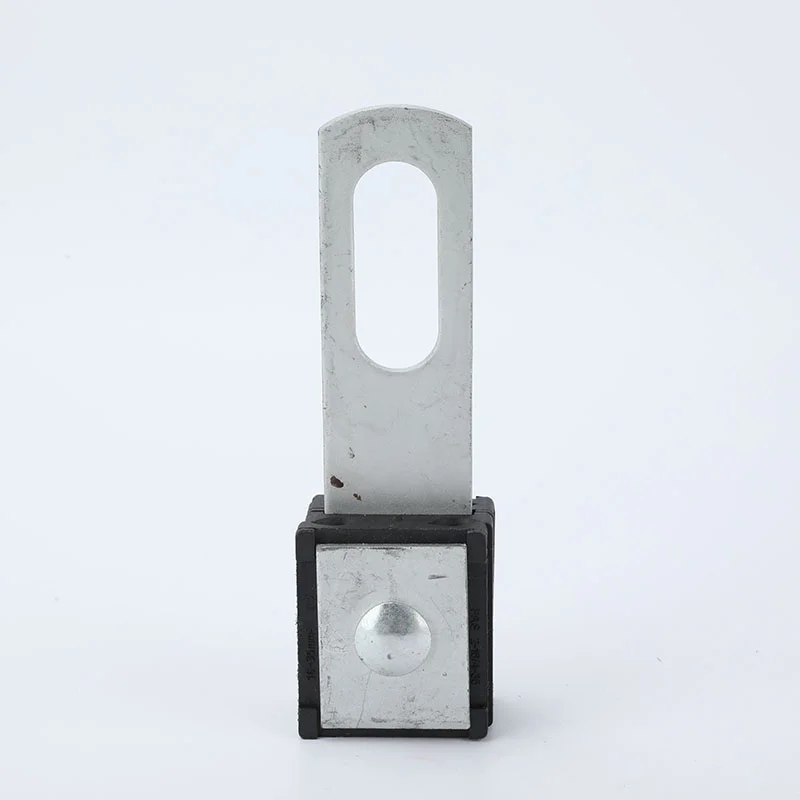

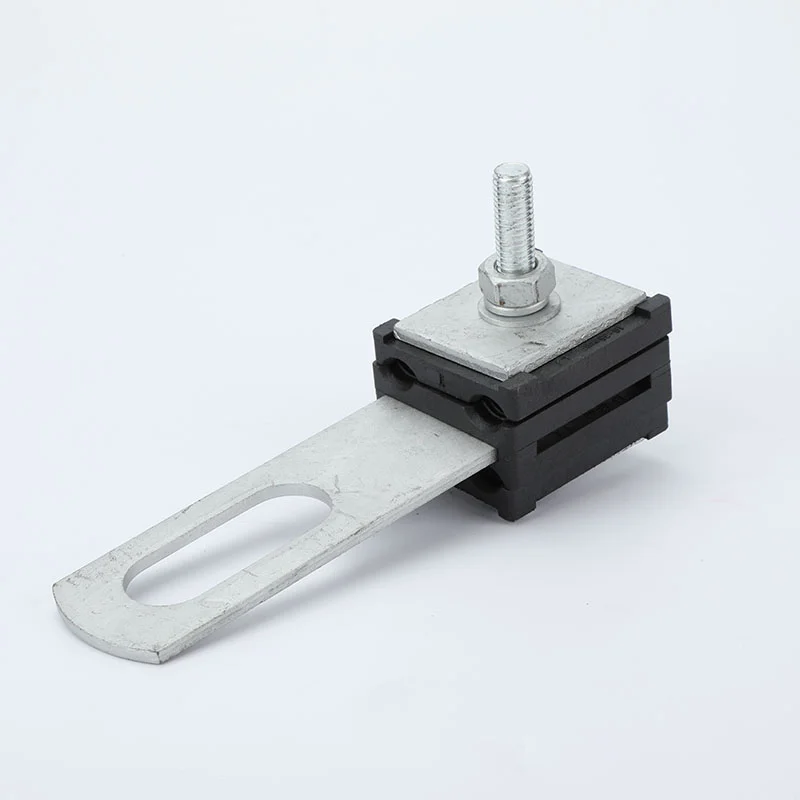

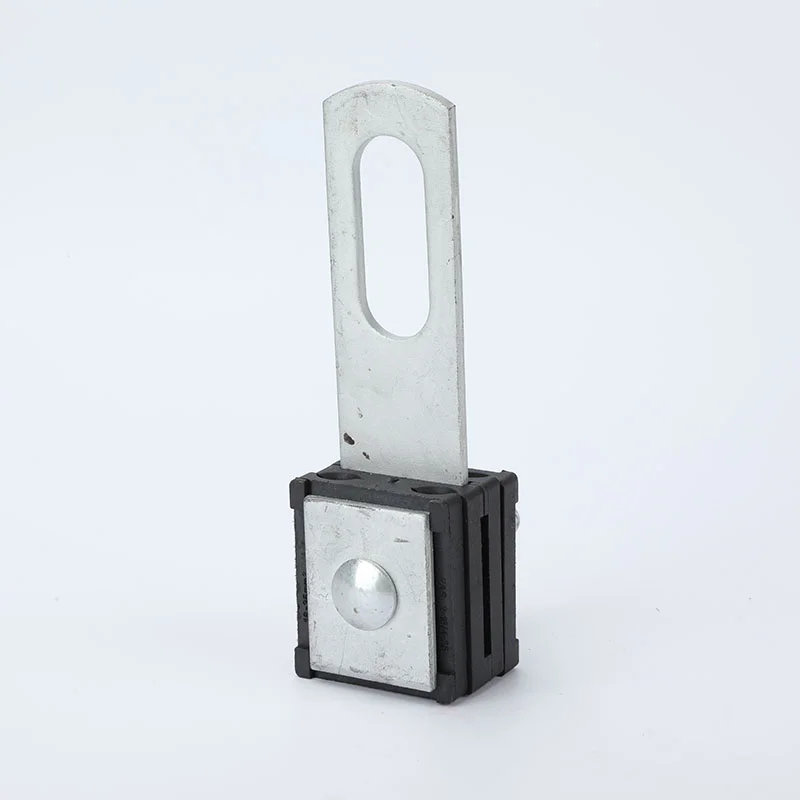

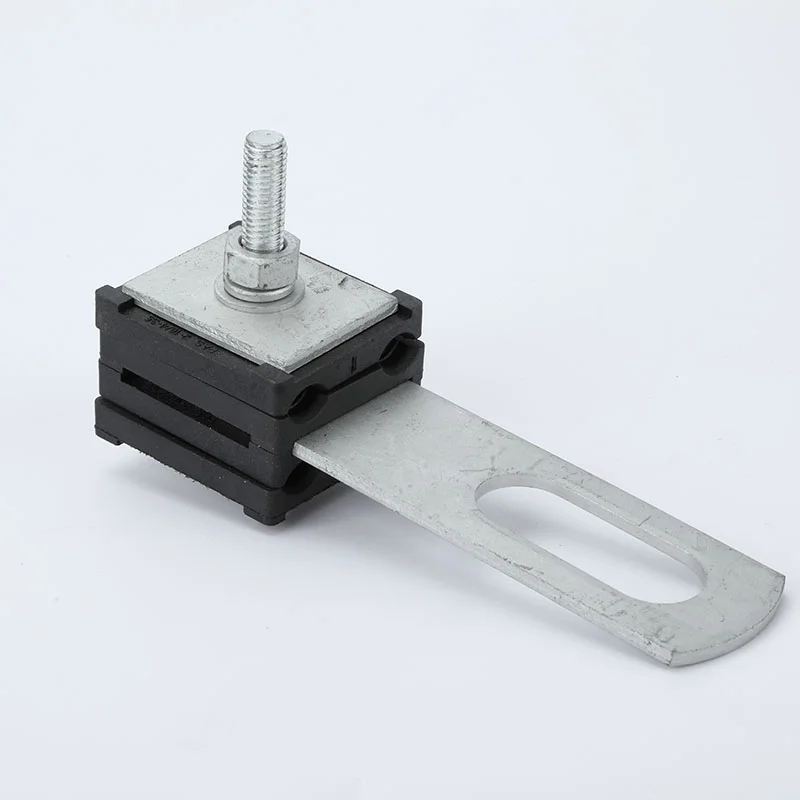

PAS-4 is a hanging clamp made of a vertical hanger with a long eye at the top and a square polymer block at the bottom that closes around the cable.

Where it is used

It suspends an insulated service drop or a small bundle from a hook, pin or bracket. The long eye lets the assembly hang plumb whatever angle the fixing point sits at.

How it holds the conductor

The cable passes through the polymer block and the block is closed around it. Polymer insulates the cable from the hanger, and being softer than metal it does not mark the sheath at the contact point.

Fixing and installation

Open the block, seat the cable, close and secure, then hang the eye. Keep the hanger vertical — a clamp hung at an angle loads one side of the block only.

How to Select the Right Model

Confirm when ordering:

ParameterValue
Cable outside diameterMust be inside the block range
Fixing pointHook, pin or bracket — state the diameter
HangerMetal, with a long eye
BlockPolymer
Breaking loadConfirmed per order — see the note below

PAS-4 and the PAT series are both hanging clamps but use different bodies. Send the cable diameter and we will confirm which of the two fits it.

Sending an enquiry for PAS-4

One message with the conductor size, the pole or wall fixing and the quantity is enough for us to come back with the model, the grip value and a price. Drawings are welcome in place of a written description.

Request a quotation

Send us the cable type and size, quantity and destination port for a quotation with pricing and lead time. View all suspension clamp models →
