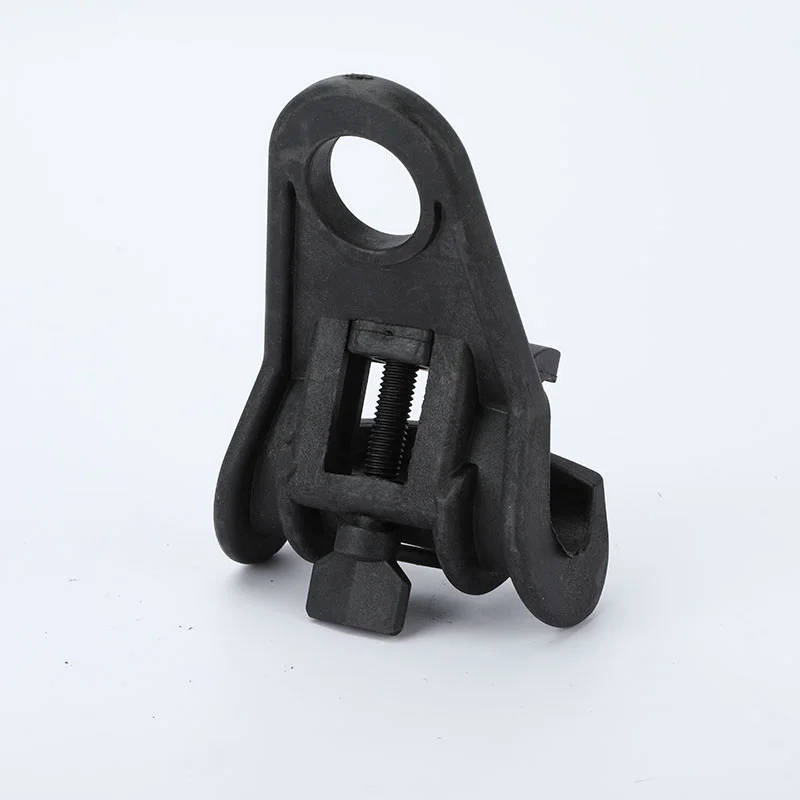

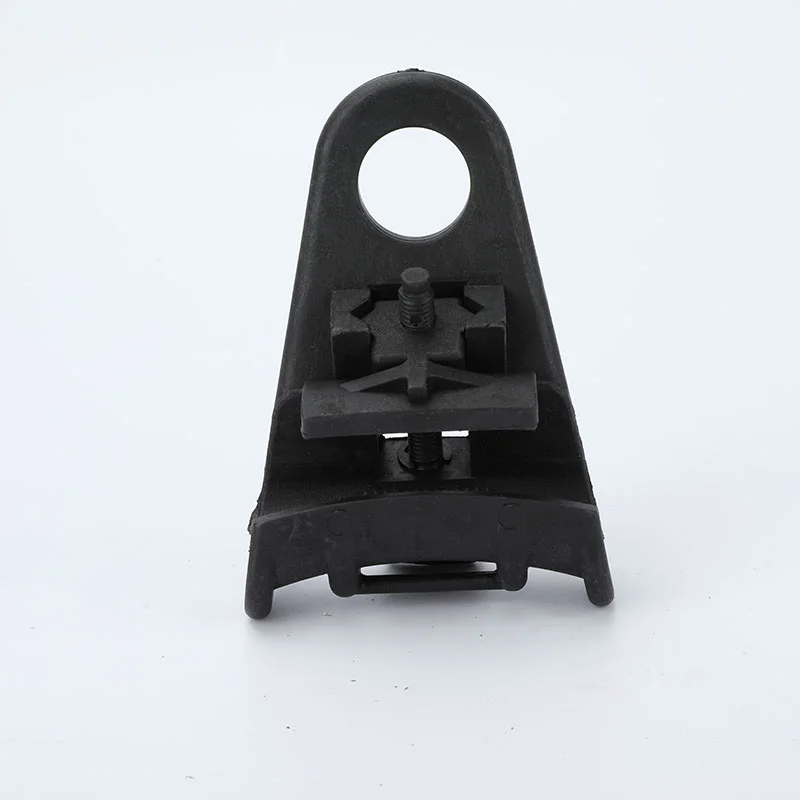

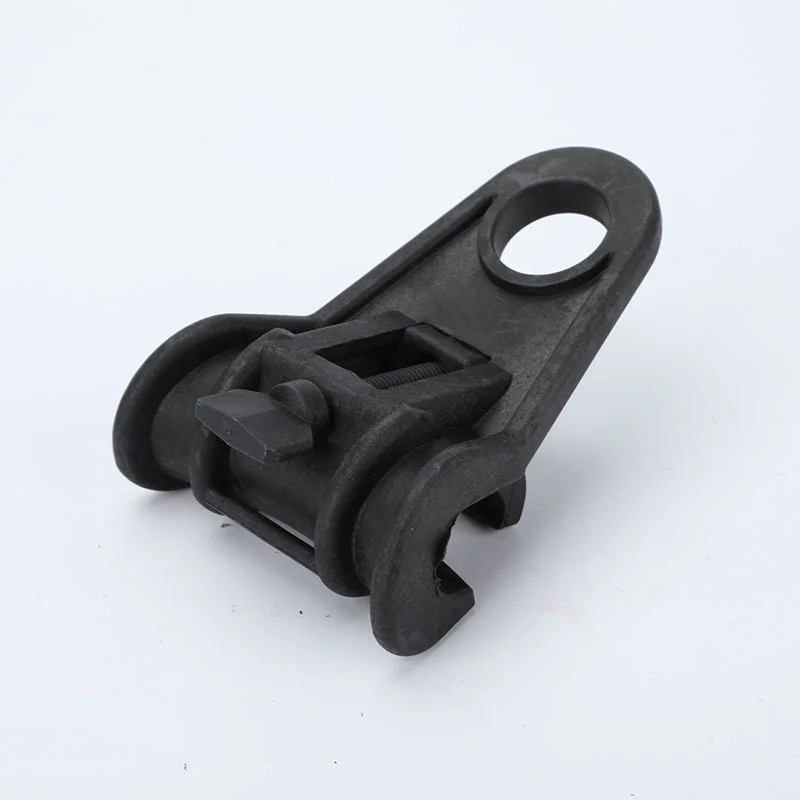

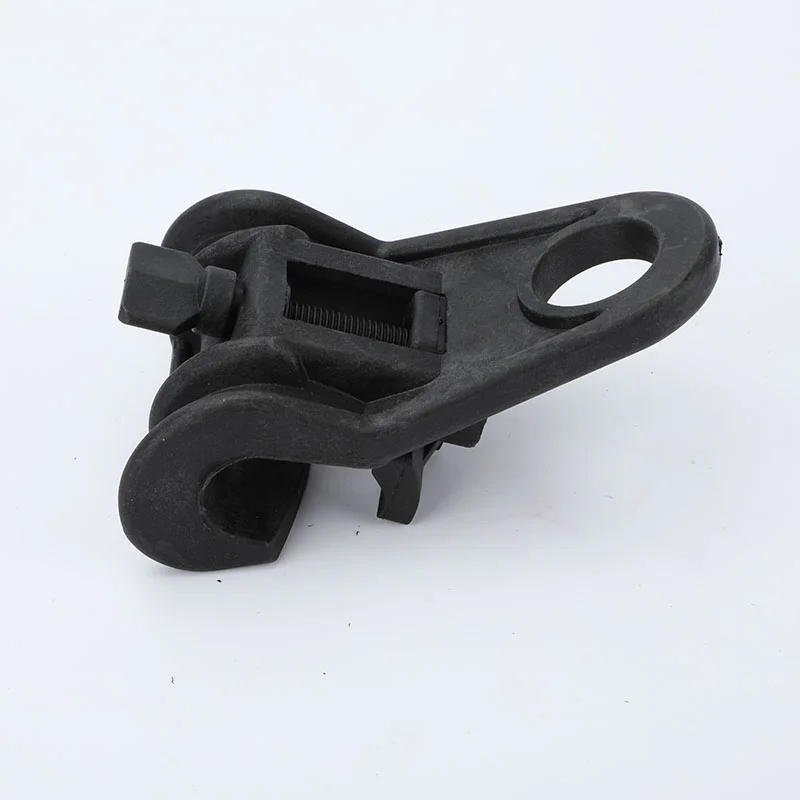

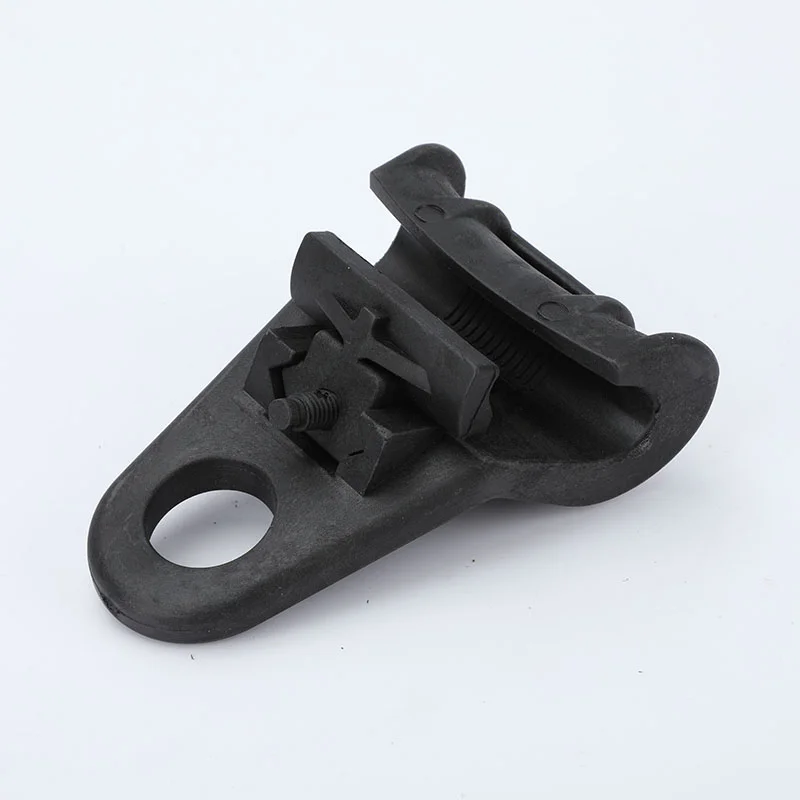

PS54 Suspension clamp series

Moulded polymer suspension clamp with an integral eye and an adjustable lock that takes up a range of messenger sizes.

  • Model: PS54
  • Product Type: Suspension Clamp

PS54 is a moulded polymer suspension clamp with an integral eye. The body is one polymer moulding rather than a metal frame with a separate insert, which is what makes it light and non-corroding.

Where it is used

It hangs the insulated neutral messenger of an LV-ABC cable on a pole, working with a bracket or hook. Because the body is polymer, the messenger is insulated from the support, and the clamp can be worked without extra insulating links.

How it holds the conductor

The messenger sits in a groove and is closed by an adjustable lock that takes up the range of cable sizes. The lock is adjustable rather than fixed, so one body covers a band of messenger diameters instead of one.

Fixing and installation

Set the messenger into the groove, close the lock and check that it has taken up on the cable before hanging. A lock that is closed on the groove but not on the messenger will let the cable slide once the span is tensioned.

How to Select the Right Model

Confirm when ordering:

ParameterValue
Messenger diameterMust be inside the lock range
Conductor cross-section25–95 mm² is the usual band for this body — confirm
BodyMoulded polymer, UV stabilised
FixingBracket or hook, ordered separately
Breaking loadConfirmed per order — see the note below

25–95 mm² is the band this body is normally quoted against, but the figure varies with the polymer grade and the messenger construction. We confirm the rated value for the batch you order rather than quoting a catalogue number.

Sending an enquiry for PS54

One message with the conductor size, the pole or wall fixing and the quantity is enough for us to come back with the model, the grip value and a price. Drawings are welcome in place of a written description.

Request a quotation

Send us the cable type and size, quantity and destination port for a quotation with pricing and lead time. View all suspension clamp models →
