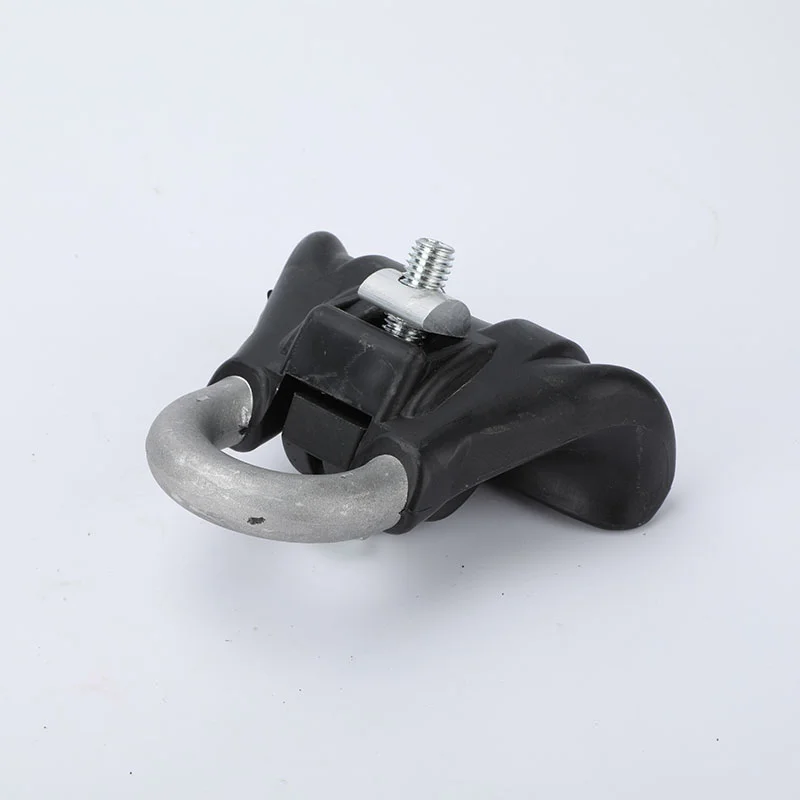

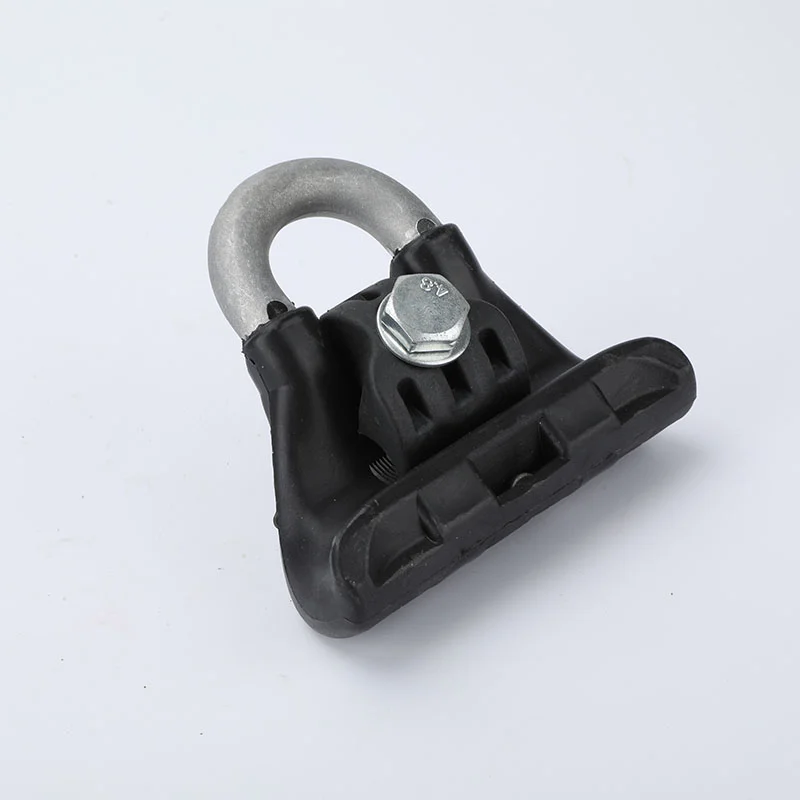

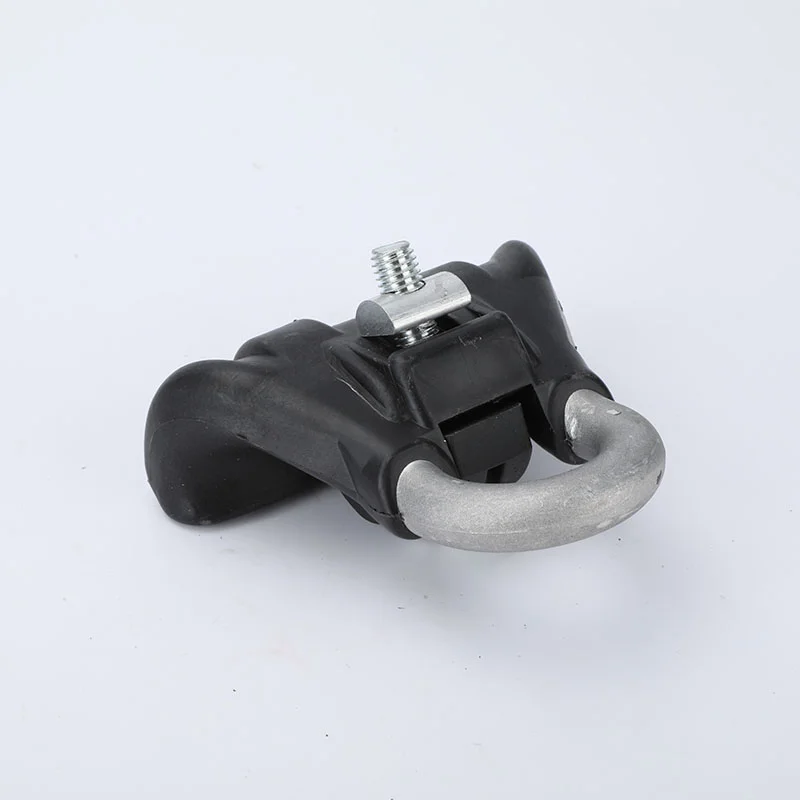

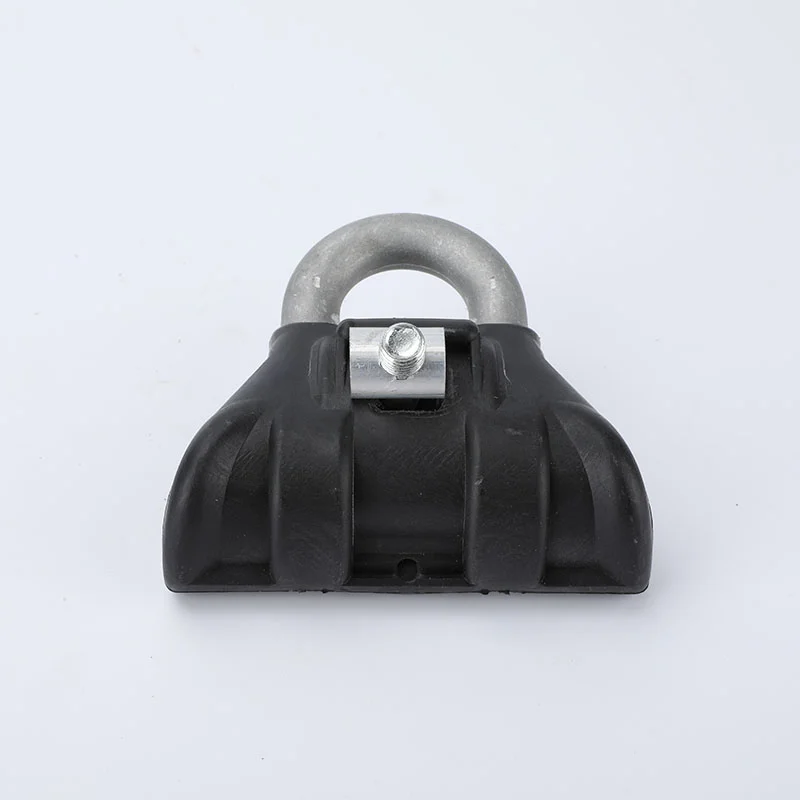

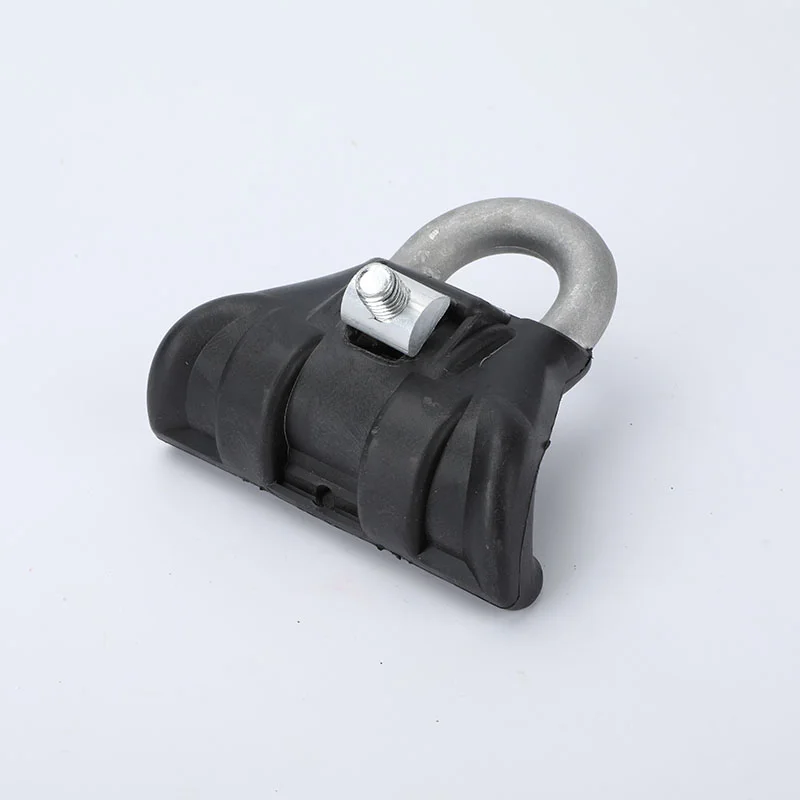

SY95 Suspension clamp series
SY95 Suspension Clamp supports 16-95mm² with 22kN breaking load for reliable performance and long service life.
- Model: SY95
- Product Type: Suspension Clamp
- Cross-Section / Cable Range: 16-95mm²
- Breaking Load: 22kN
Product Description
Suspension Clamps are used to support and suspend LV-ABC cables at intermediate poles on overhead distribution lines. The clamps are designed to absorb the mechanical load without damaging the cable insulation. Manufactured from corrosion-resistant materials, they ensure stable suspension performance under wind, ice, and thermal cycling conditions.
Technical Specifications
| Item | Specification |
| Model | SY95 |
| Product Type | Suspension Clamp |
| Cross-Section / Cable Range | 16-95mm² |
| Breaking Load | 22kN |
| Product Category | Aerial Cable Accessories |
| Manufacturer | GGLDF |
Key Advantages
- Absorbs mechanical load without cable damage
- Corrosion-resistant materials
- Stable suspension under wind and ice loads
- Easy installation on intermediate poles
Typical Applications
Based on the manufacturer’s stated scope of use, the SY95 Suspension Clamp is suitable for the following scenarios:
- Suspension support for aerial cables at intermediate poles.
- LV-ABC overhead distribution line installation and maintenance.
- Aerial cable networks requiring suspension clamp for mechanical support or termination.
- Urban grid upgrades and rural electrification projects.
- Telecommunication network overhead cable installations.
