Busbar Insert 200A

200 A plug-in busbar insert with spring-loaded contact shoes and flat tab terminals for LV distribution board tap-offs. 3-pole, PA66-GF housing.

  • Model: Busbar Insert
  • Current: 200 A
  • Poles: 3P
  • Voltage: 690 V AC

Product Description

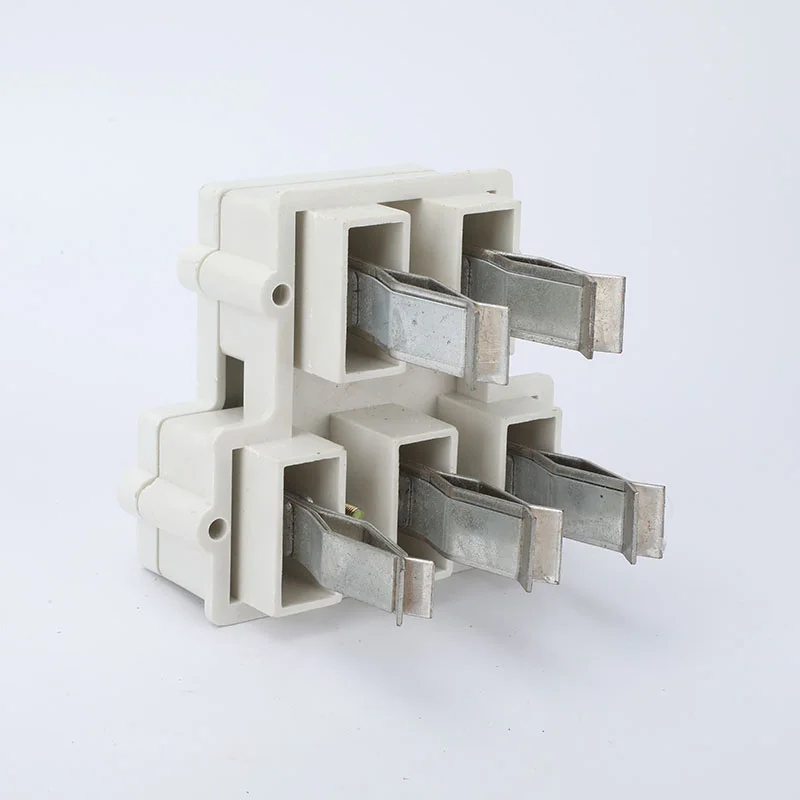

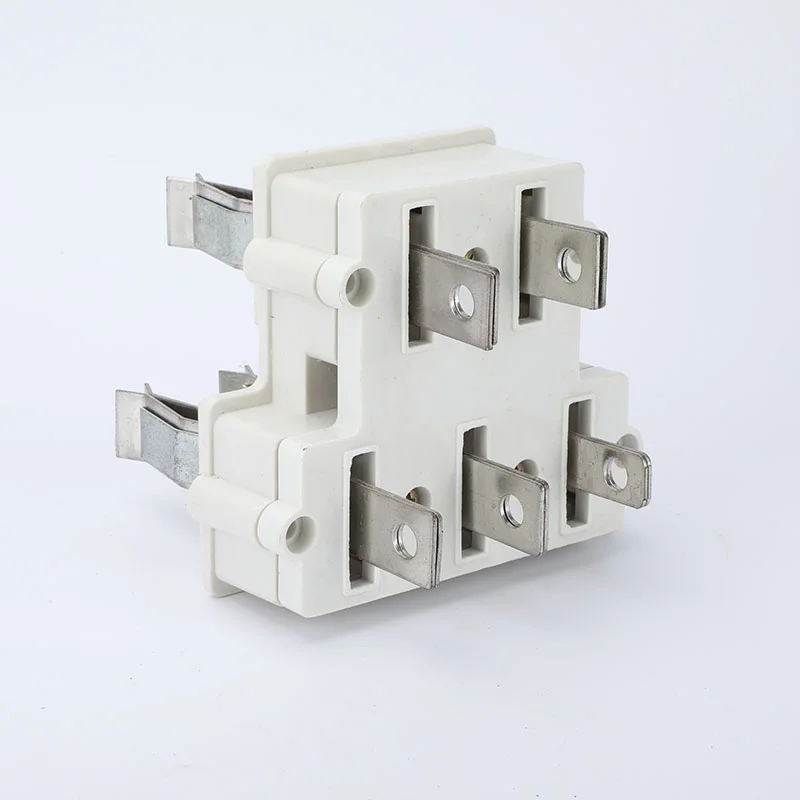

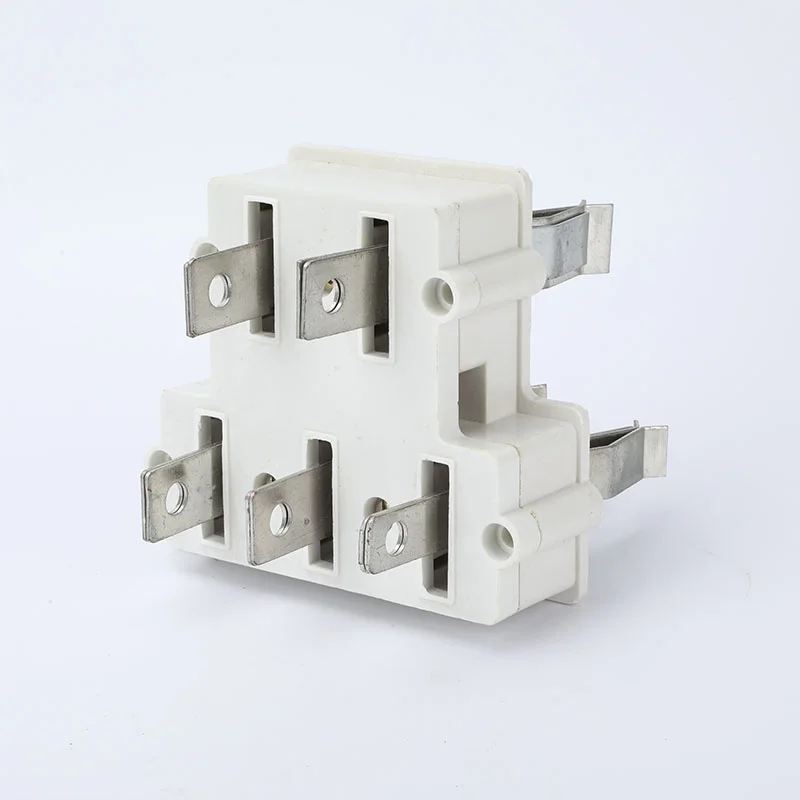

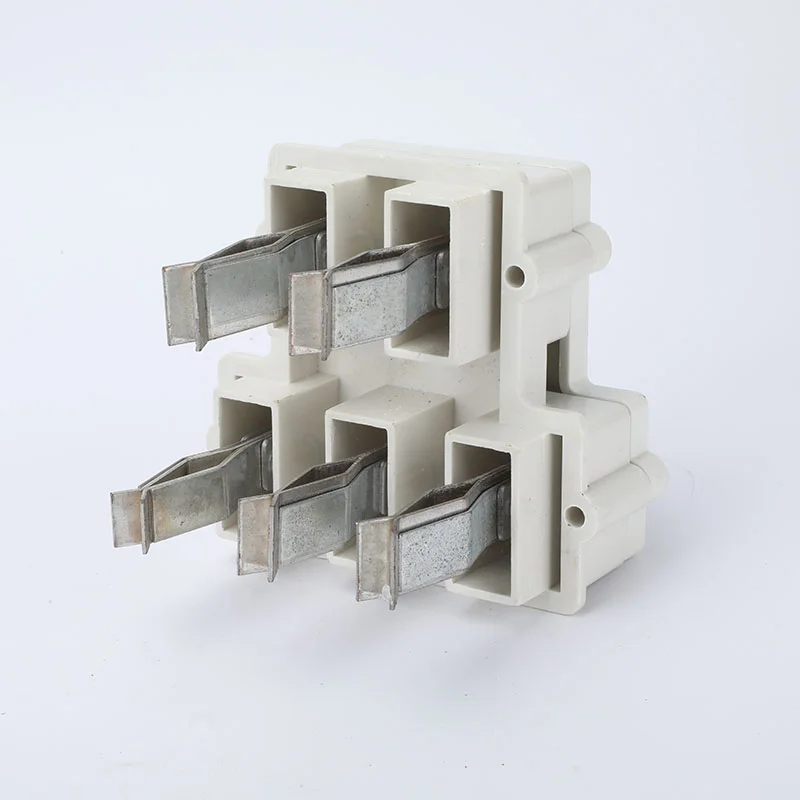

The Busbar Insert 200A is a plug-in tap-off unit for low-voltage busbar systems in distribution boards and modular panelboards. Spring-loaded contact shoes on the rear clamp onto the busbar, while flat tab terminals on the front accept cable lugs for outgoing circuits. It adds a tap-off without drilling, cutting or re-machining the busbar.

Each pole uses two parallel contact shoes and two tab terminals, so the 200 A rating is shared across a larger contact area. That lowers contact resistance and heat rise compared with a single-shoe insert, and it keeps the unit stable when the busbar expands under load.

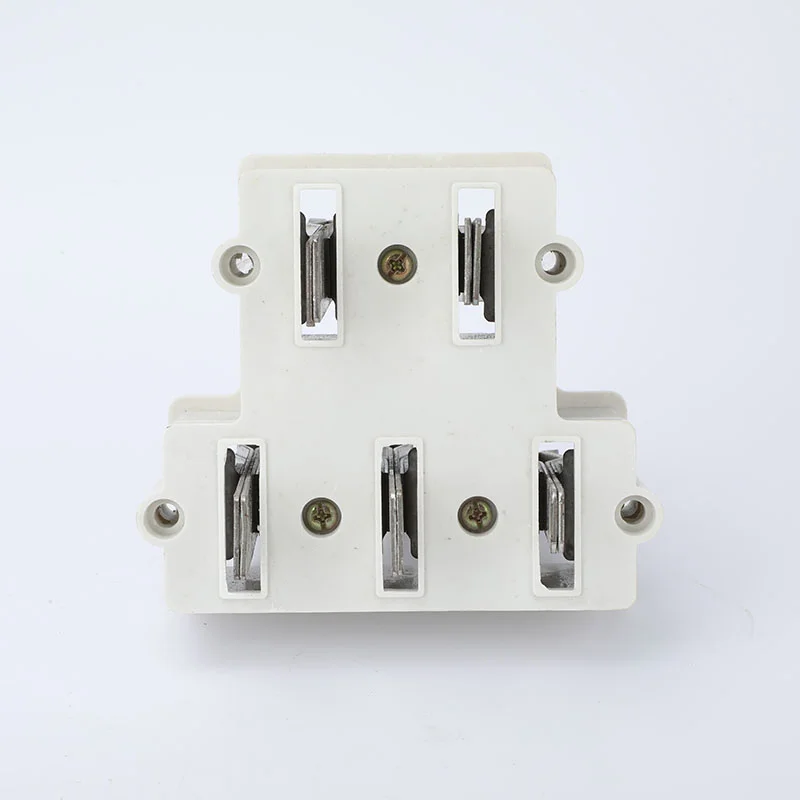

The housing is moulded from glass-fibre reinforced polyamide. It separates the phases, holds the contact shoes in alignment and provides two mounting holes for panel fixing. The insert is intended for installation by qualified personnel with the busbar de-energized.

Technical Specifications

ItemSpecification
ModelBusbar Insert
Rated Current200 A
Poles3P
Rated Insulation Voltage690 V AC
Frequency50 / 60 Hz
Contact System6 spring-loaded shoes, two per pole
Contact MaterialTin-plated copper alloy
Terminals6 flat tabs with fixing holes, two per pole
HousingPA66-GF, flame-retardant
MountingTwo screws through moulded fixing holes
ManufacturerGGLDF

How to Select the Right Insert

Confirm the busbar thickness, width and phase spacing before ordering. The spring shoes are designed to clamp a specific bar thickness; a bar that is too thin will not develop full contact pressure, and a bar that is too thick will damage the shoes. Send a drawing or measure the bar with a calliper.

Check the outgoing cable lug against the tab width and hole diameter, and allow for the enclosure temperature when applying the 200 A rating. If several inserts are mounted side by side, keep the recommended spacing so heat can escape and the phase barriers remain effective. For aluminium cable, use a bimetallic lug to avoid contact corrosion at the tab.

Key Advantages

  • Adds a 200 A tap-off without drilling or cutting the busbar
  • Two parallel contact shoes per pole for lower resistance and heat rise
  • Glass-fibre reinforced housing with moulded phase barriers
  • Flat tab terminals accept standard cable lugs
  • Compact body fits conventional distribution board layouts

Typical Applications

  • Outgoing circuit tap-offs in low-voltage distribution boards
  • Modular panelboards and busbar-mounted distribution systems
  • Workshop, commercial and light industrial power distribution
  • Retrofit and extension of existing busbar installations

Send the busbar thickness, phase spacing, cable size and quantity for a quotation and dimensional drawing. View all busbar accessories →
