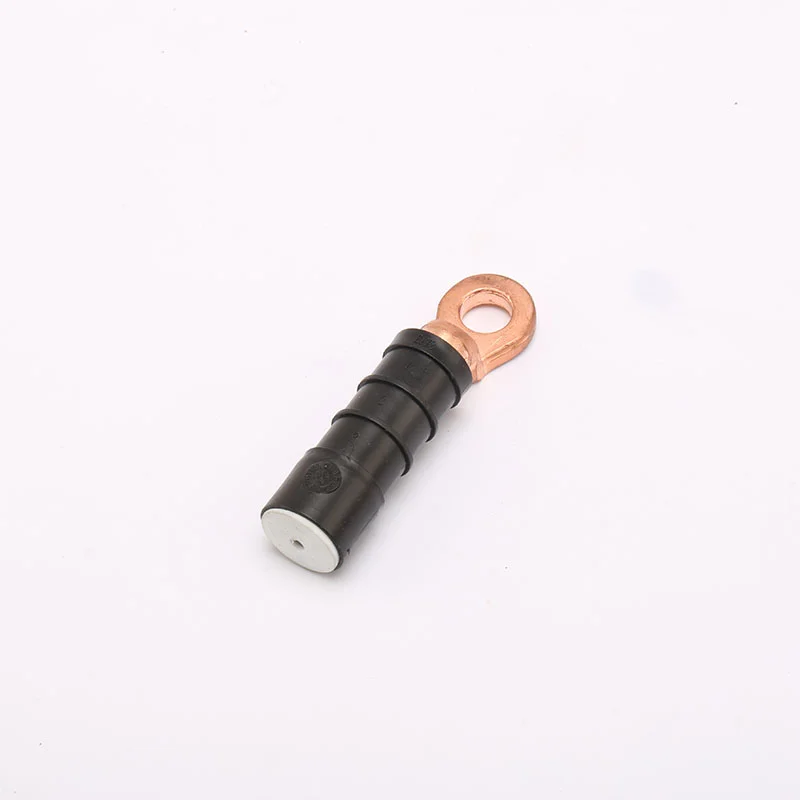

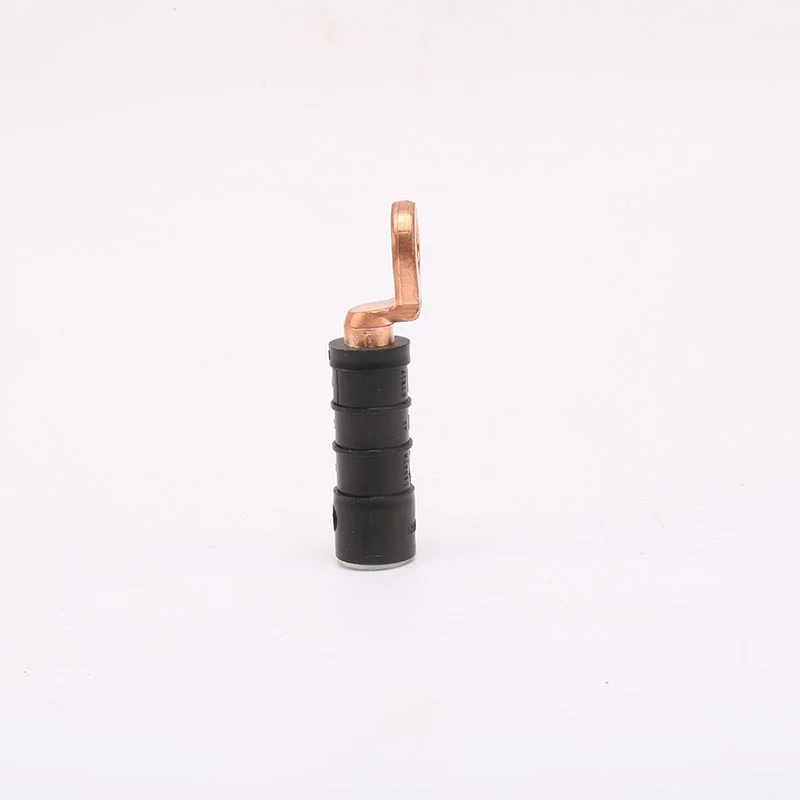

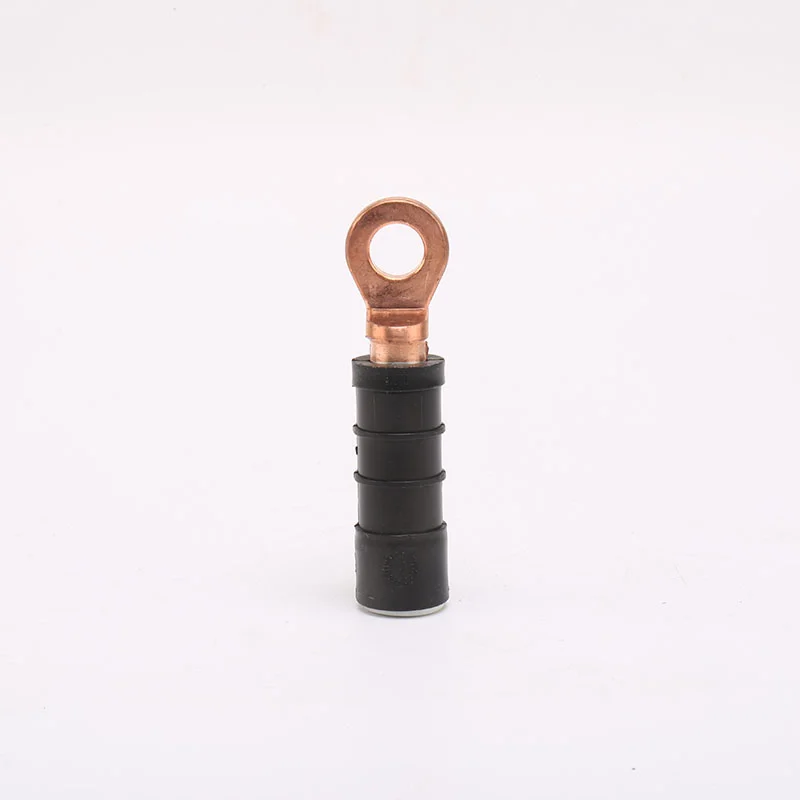

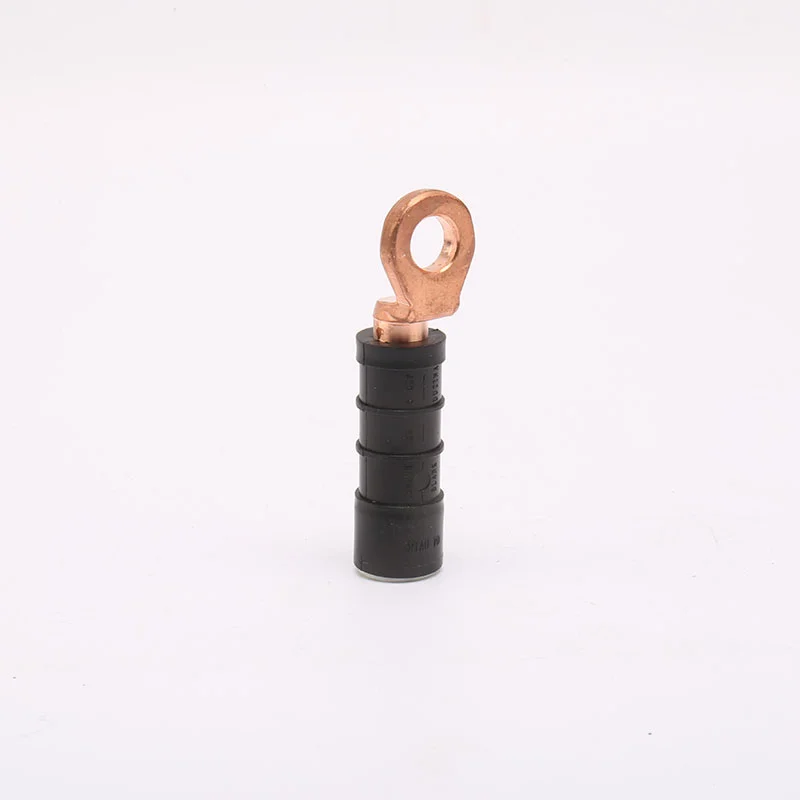

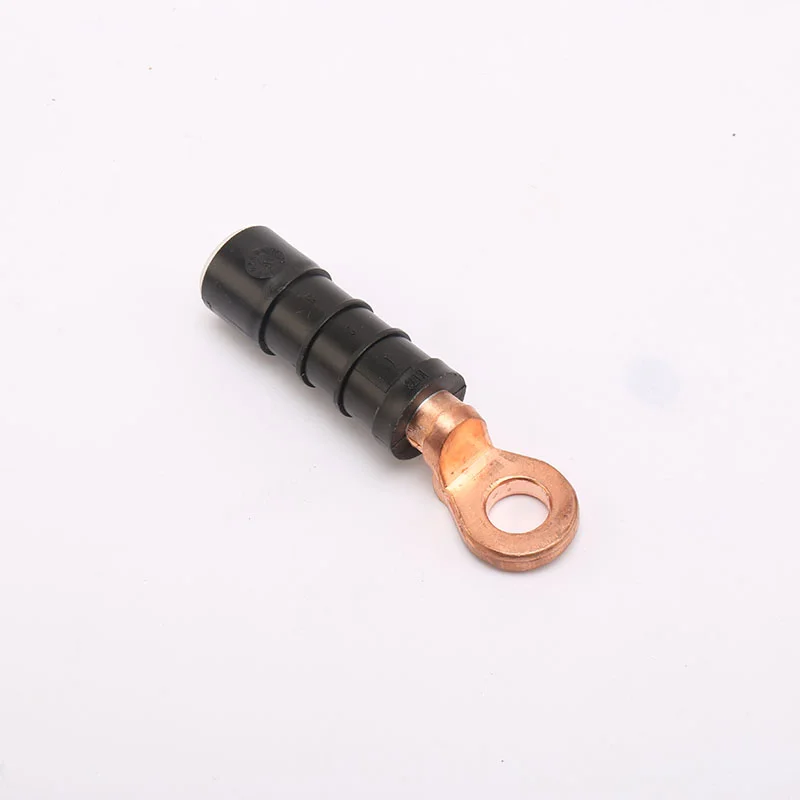

Pre-insulated terminal CPTAU for fixed cable connection
Specification Size Φ D d L L1 DTL-2-16 13 16 5.5 90 42 DTL-2-25 13 16 6.5 90 42 DTL-2-35 13 16 8 90 42 DTL-2-50 13 20 9 90 43 DTL-2-70 13 20 11 90 43 DTL-2-95 13 20 12.5 90 43 DTL-2-120 13 25 13.5 115 60 DTL-2-150 13 25 15.5 115 60 […]
| Specification | Size | ||||
| Φ | D | d | L | L1 | |
| DTL-2-16 | 13 | 16 | 5.5 | 90 | 42 |
| DTL-2-25 | 13 | 16 | 6.5 | 90 | 42 |
| DTL-2-35 | 13 | 16 | 8 | 90 | 42 |
| DTL-2-50 | 13 | 20 | 9 | 90 | 43 |
| DTL-2-70 | 13 | 20 | 11 | 90 | 43 |
| DTL-2-95 | 13 | 20 | 12.5 | 90 | 43 |
| DTL-2-120 | 13 | 25 | 13.5 | 115 | 60 |
| DTL-2-150 | 13 | 25 | 15.5 | 115 | 60 |
| DTL-2-185 | 13 | 32 | 17.5 | 122 | 60 |
| DTL-2-240 | 13 | 32 | 19.5 | 122 | 60 |
| DTL-2-300 | 13 | 34 | 22.5 | 125 | 62 |
| Specification | Size | |||||
| Φ | D | d | L1 | L2 | B | |
| DTL-2-10 | 8.5 | 16 | 4.8 | 42 | 22 | 14 |
| DTL-2-16 | 8.5 | 16 | 5.5 | 42 | 22 | 14 |
| DTL-2-25 | 8.5 | 16 | 7 | 42 | 22 | 14 |
| DTL-2-35 | 8.5 | 16 | 8.5 | 42 | 22 | 14 |
| DTL-2-50 | 10.5 | 20 | 9.5 | 50 | 24 | 16 |
| DTL-2-70 | 10.5 | 20 | 12 | 50 | 24 | 16 |
| DTL-2-95 | 10.5 | 20 | 13 | 50 | 29 | 16 |
| DTL-2-120 | 13 | 25 | 15 | 60 | 29 | 20 |
| DTL-2-150 | 13 | 25 | 16 | 60 | 29 | 20 |
| DTL-2-185 | 13 | 32 | 18 | 60 | 33 | 24 |
| DTL-2-240 | 13 | 32 | 20 | 60 | 33 | 24 |
| DTL-2-300 | 13 | 34 | 23.2 | 65 | 40 | 30 |
| DTL-2-400 | 13 | 40 | 26 | 72 | 40 | 30 |
