PAL1000 Aluminum alloy Export-grade PAL tension clamp series
The PAL1000 aluminium alloy tension clamp anchors 25-50 mm² LV-ABC conductors at overhead line terminations. Rated 12 kN breaking load, installed without special tooling.
- Model: PAL1000
- Product Type: Metal Tension Clamp
- Cross-Section / Cable Range: 25-50mm²
- Breaking Load: 12kN
Product Description

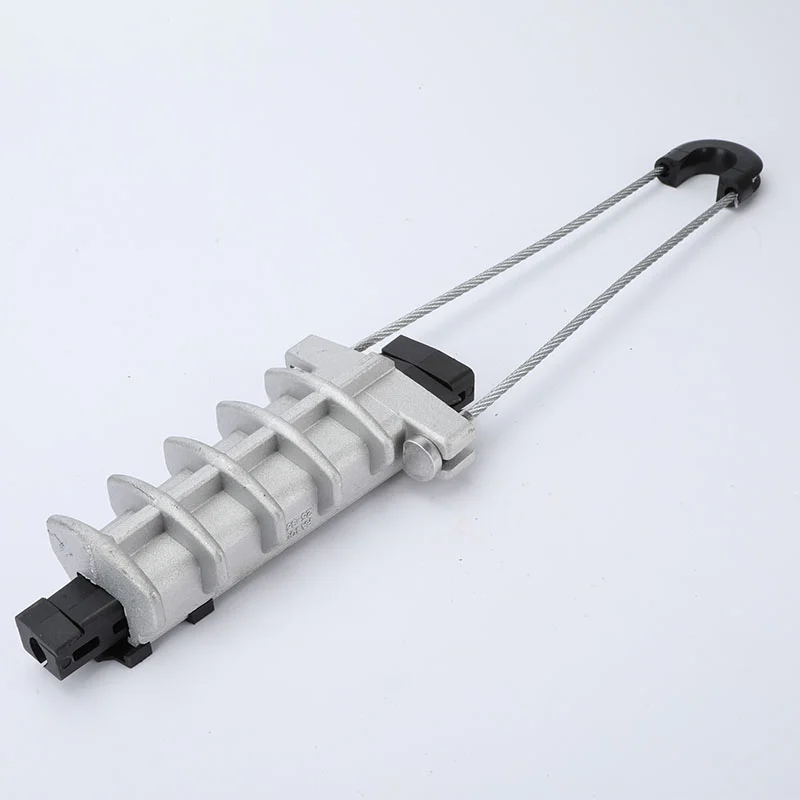

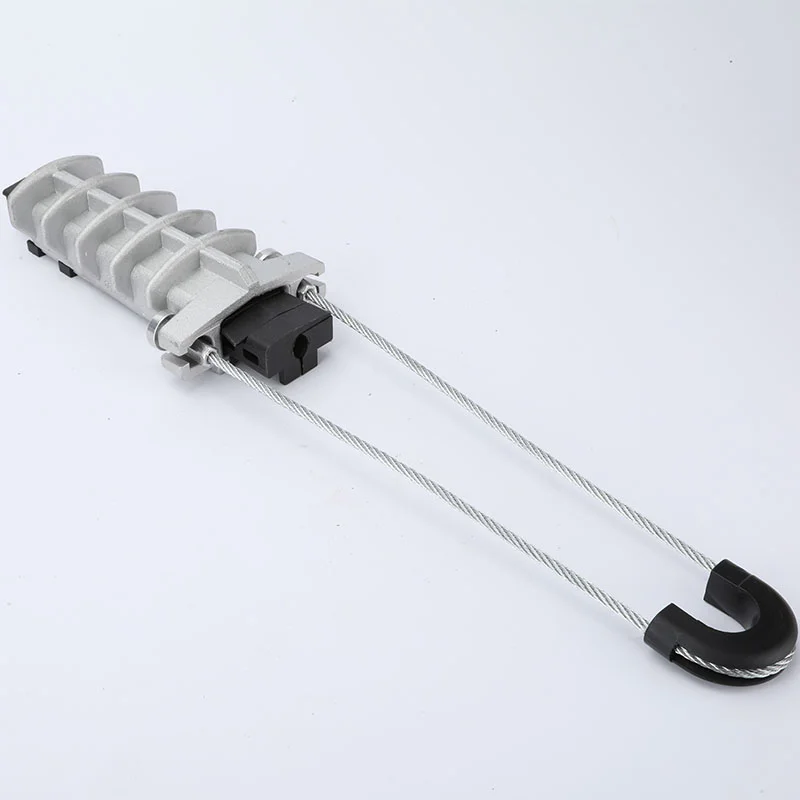

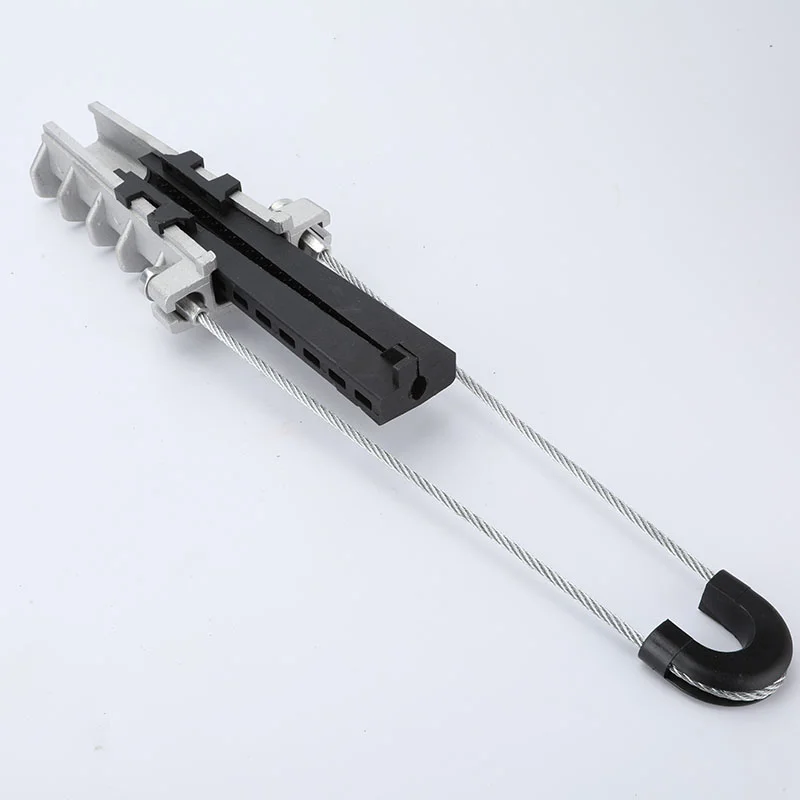

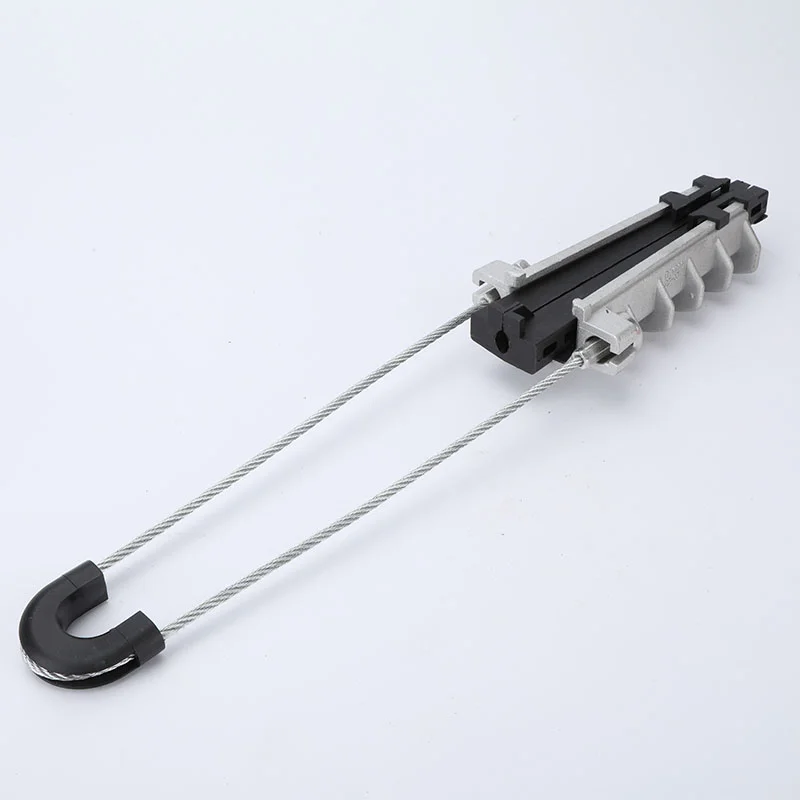

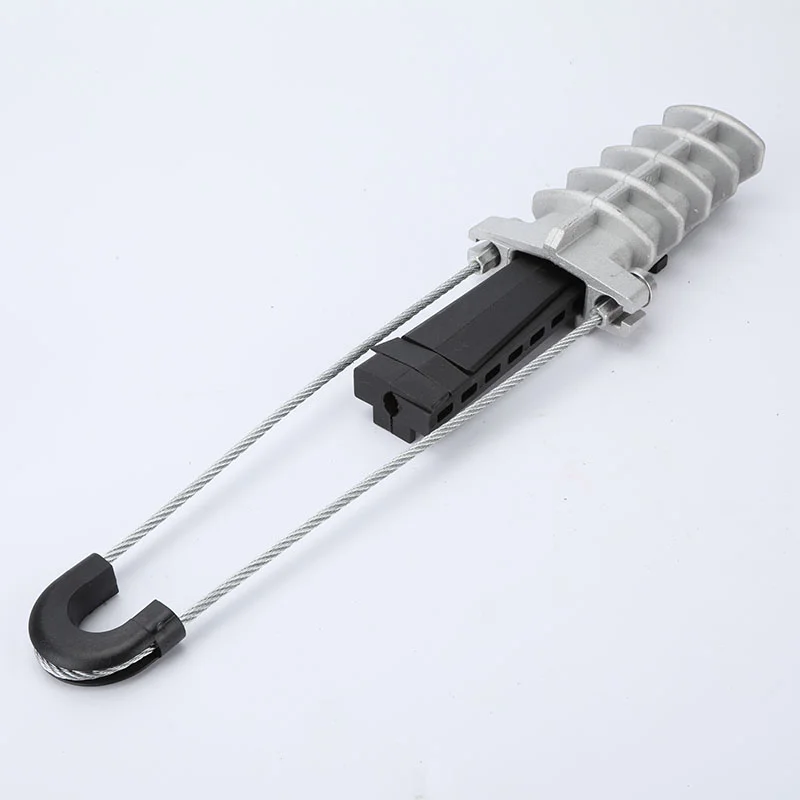

The PAL1000 is an aluminium alloy tension clamp (dead-end clamp) for anchoring LV-ABC conductors on overhead distribution lines. The clamp grips the conductor along its full length, transferring the line tension into the clamp body instead of concentrating it at one point on the conductor surface.
Distributed grip reduces conductor deformation under sustained tension. The clamp is shaped to the conductor and installed by hand, so no special tooling is needed at the pole.
This model covers 25–50 mm² conductors with a 12 kN rated breaking load. If your conductor is outside this range, check the selection table below before ordering.
Technical Specifications
| Item | Specification |
| Model | PAL1000 |
| Product Type | Aluminium Alloy Tension Clamp (Dead-end Clamp) |
| Cross-Section / Cable Range | 25–50 mm² |
| Breaking Load | 12 kN |
| Material | Aluminium alloy body with Nylon PA66 contact parts |
| Product Category | Aerial Cable Accessories |
| Manufacturer | GGLDF |
How to Select the Right Model
The PAL series is divided by conductor size. Match your conductor cross-section to the row below.
| Your specification | Model | Rated breaking load |
| 16–35 mm² | PAL1000A | 10 kN |
| 25–50 mm² | PAL1000 | 12 kN |
| 35–70 mm² | PAL1500 | 15 kN |
| Round conductor, 12–15 mm diameter | PAL1500D | 15 kN |
| 70–150 mm² | PAL2000 | 18 kN |
| FTTH drop cable | ODWAC series | See ODWAC pages |
If the conductor falls between two ranges, choose the larger clamp and confirm the conductor fits inside the clamp bore before ordering.
Key Advantages
- Distributed grip along the conductor length reduces surface deformation
- Rated 12 kN breaking load for standard LV overhead distribution
- Aluminium alloy body with Nylon PA66 contact parts, suited to outdoor service
- Fitted without a special tool
Typical Applications
- Dead-end and anchor termination of LV-ABC overhead distribution conductors.
- Strain locations where the full conductor tension must be absorbed.
- Span termination before poles, towers or switch structures.
- Overhead line construction and maintenance.
Send us the conductor size, quantity and destination port for a quotation with pricing and lead time. View all tension clamp models →
