Pig tail hook + sheep eye ring + iron hanging ring
Hot-dip galvanized pig tail hook, sheep eye ring and iron hanging ring set for suspending drop wire and aerial cable on poles and walls.
- Model: Pig tail hook set
- Thread: M8-M16
- Material: Q235B
- Finish: Hot-dip galvanized
Product Description

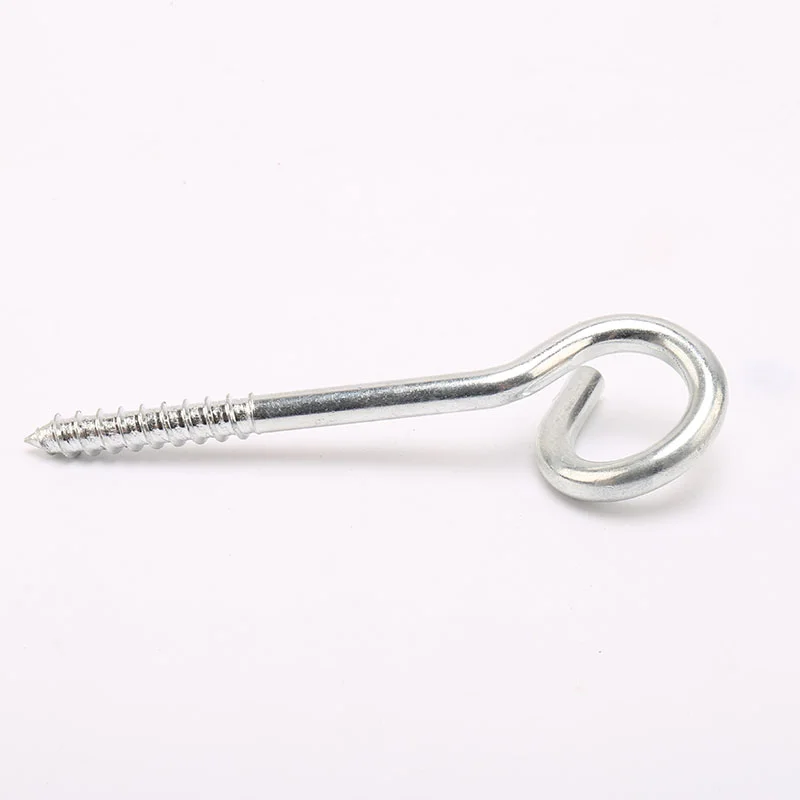

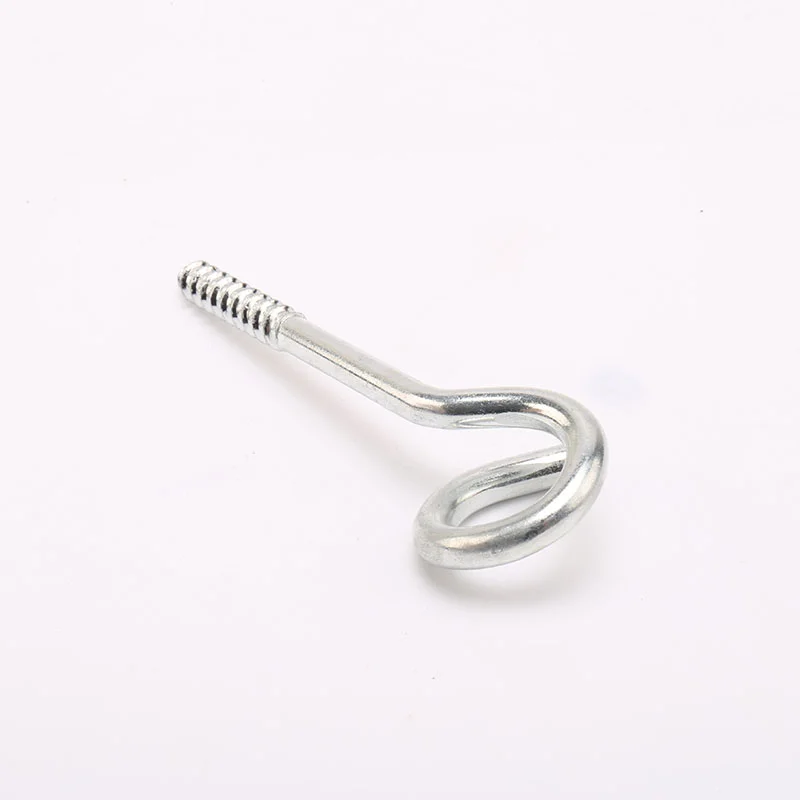

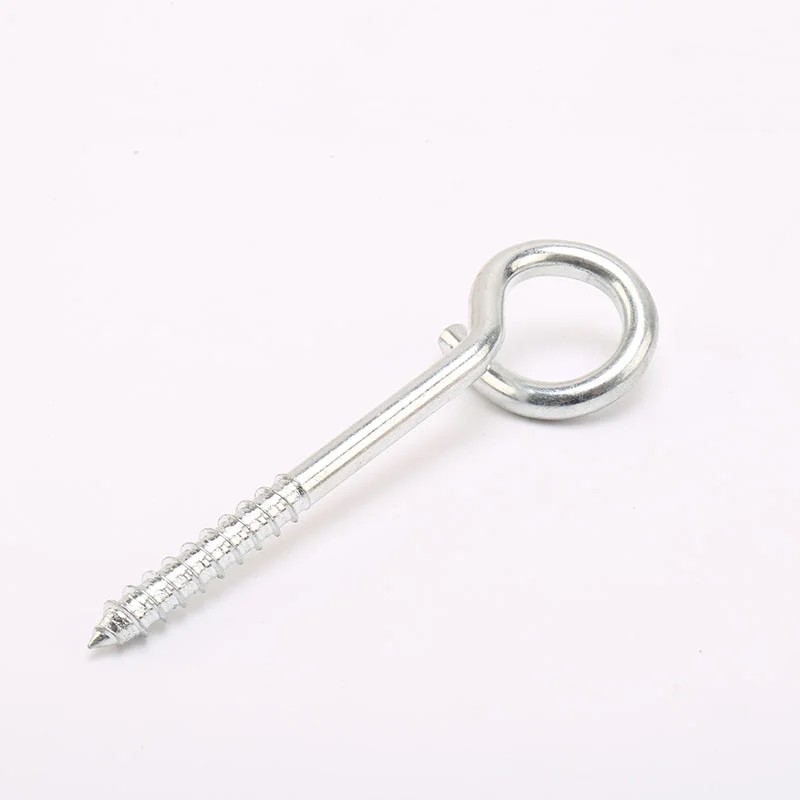

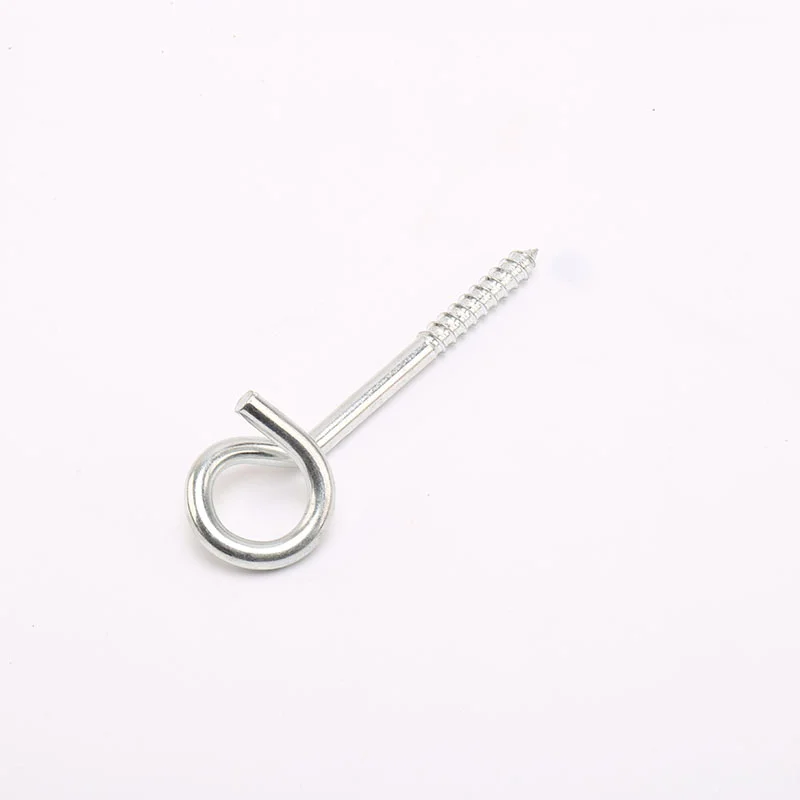

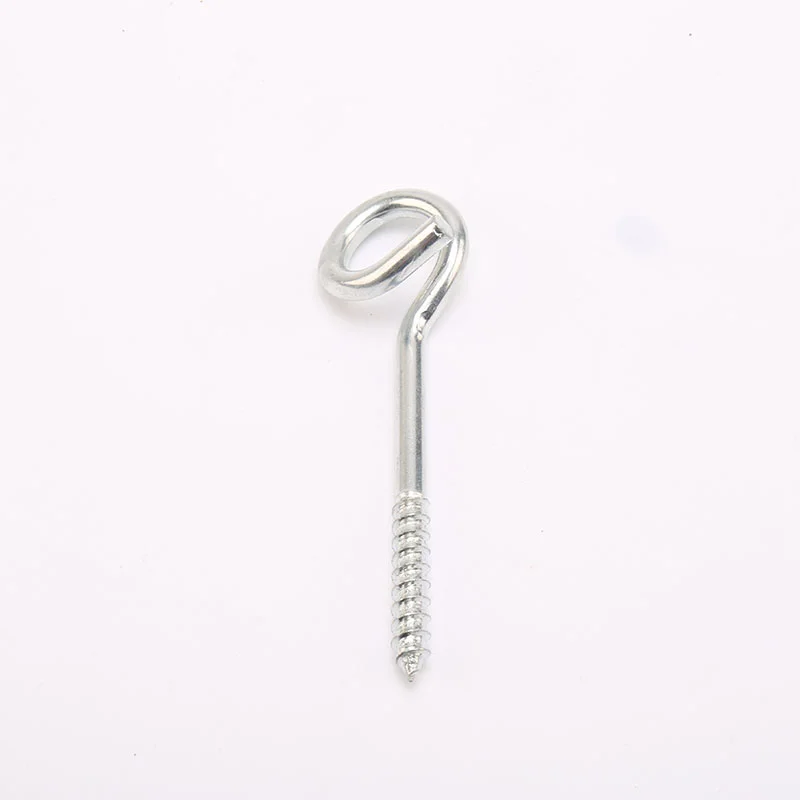

This three-piece set combines a pig tail hook, a sheep eye ring and an iron hanging ring for suspending drop wire and small aerial cable on poles, walls and brackets. The pig tail hook is a screw-in hook with a formed eye at the top; the sheep eye ring provides a smooth, replaceable wear point; the hanging ring carries the drop wire clamp or lashing.
The hook is available with a wood-screw thread for timber poles and with a machine thread and nut for steel brackets. The thread is rolled, not cut, so the grain of the steel follows the thread profile and the hook resists pull-out better under wind-induced vibration.
All three parts are hot-dip galvanized after forming. The coating covers the thread, the inside of the eye and the ring joint, which are the first areas to rust on painted or electroplated hardware. The set is assembled by hand and can be taken apart on site to change the ring without replacing the hook.
Technical Specifications
| Item | Specification |
| Model | Pig tail hook + sheep eye ring + iron hanging ring |
| Set Contents | Screw-in pig tail hook, sheep eye ring, iron hanging ring |
| Material | Q235B carbon steel |
| Thread | Wood-screw thread or metric machine thread, M8–M16 |
| Overall Length | 55–320 mm, depending on model |
| Finish | Hot-dip galvanized, ISO 1461 / ASTM A153, 70µm minimum |
| Working Load | Matched to the hook size; confirm the required load at order |
| Manufacturer | GGLDF |
How to Select the Right Set
Start with the fixing point. Timber poles take the wood-screw version; concrete poles and steel brackets take the machine-thread version with a nut or expansion anchor. Then choose the hook length so the suspended cable clears the pole hardware and stays clear of climbing space.
The ring diameter should match the drop wire clamp or lashing used on the cable. A ring that is too small forces the clamp to sit at an angle and creates a wear point on the messenger. For long spans or exposed sites, specify the larger hook and confirm the working load rather than relying on the nominal screw size.
Key Advantages
- Complete three-part set, ready to install without matching loose rings
- Hot-dip galvanized thread, eye and ring for outdoor corrosion resistance
- Rolled thread improves pull-out resistance in timber and brackets
- Replaceable ring extends service life without replacing the hook
Typical Applications
- Suspending drop wire and service cable on poles and building walls
- Fixing small aerial cable and messenger wire to brackets
- Supporting stay wire and guy fittings at distribution poles
- General overhead line and pole hardware for rural networks
Send the fixing point, cable diameter, required length and quantity for a quotation. View all hot-dip galvanized iron fittings →
