U-shaped clamp Hot-dip galvanized iron parts for circuits

Hot-dip galvanized U-shaped clamp with two hex nuts for fixing crossarms, brackets and cable trays to poles. M8-M20 threads, 70 micron zinc coating.

  • Model: U-shaped clamp
  • Thread: M8-M20
  • Material: Q235B
  • Finish: Hot-dip galvanized

Product Description

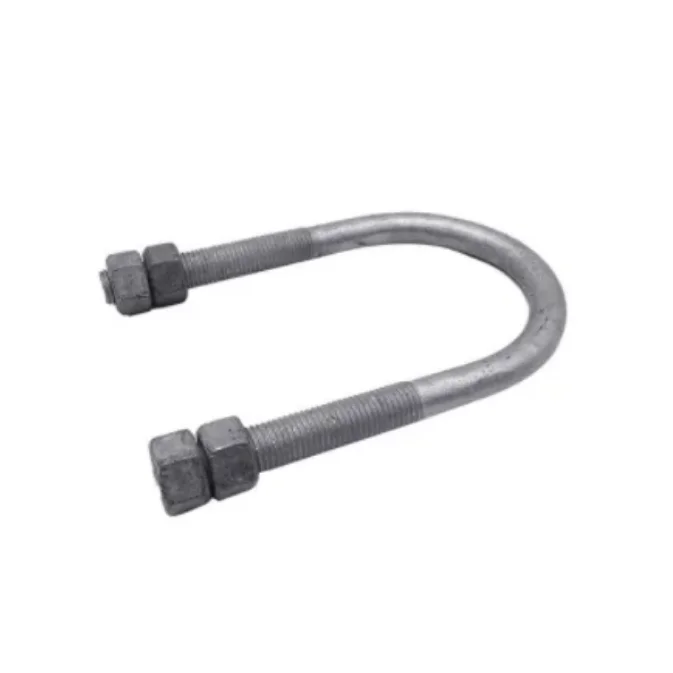

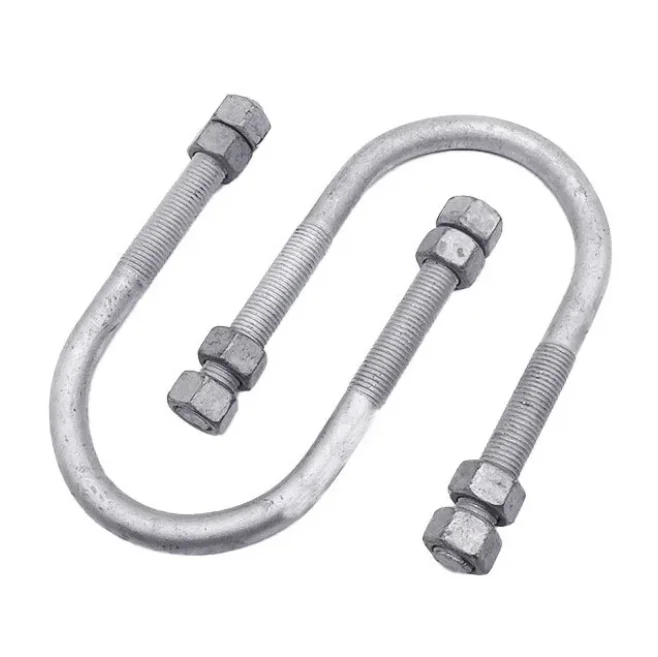

The U-shaped clamp is a hot-dip galvanized U-bolt for fixing crossarms, brackets, cable trays and distribution boxes to poles and steel structures. The legs are rolled with a clean metric thread, and two hex nuts are supplied with every clamp so the fixing is complete on arrival.

The clamp is bent from round carbon steel rather than welded from flat bar. That keeps the two legs parallel under load and avoids the stress concentration at the bend that appears on fabricated clamps. After bending and threading, the whole part is hot-dip galvanized, including the thread run-out and the inside of the bend.

For overhead line work, the clamp is normally used in pairs: one above and one below the crossarm, or two clamps on opposite sides of a pole. The zinc coating is thick enough for outdoor exposure, but the clamp should not be over-tightened into soft wood, which crushes the pole surface and loosens the fixing.

Technical Specifications

ItemSpecification
ModelU-shaped clamp
Product TypeU-bolt clamp with two hex nuts
MaterialQ235B carbon steel
ThreadM8, M10, M12, M16, M20 (metric coarse)
Rod Diameter8–20 mm
Inner Width40–120 mm, to suit the pole or crossarm
Leg Length100–400 mm, including thread
FinishHot-dip galvanized, ISO 1461 / ASTM A153, 70µm minimum
ManufacturerGGLDF

How to Select the Right Size

Measure the member the clamp will wrap, not the pole diameter at ground level. For a crossarm, use the arm width plus the bracket thickness; for a pole, use the diameter at the fixing point. Add 2–5 mm so the clamp seats without forcing, then check that the leg length leaves enough thread for a washer and a full nut.

Match the thread to the existing hardware on the pole. Mixing M12 clamps with M16 brackets is a common source of loose connections. If the clamp will be exposed to coastal salt or industrial fumes, specify a heavier coating and confirm the zinc thickness on the mill certificate.

Key Advantages

  • Hot-dip galvanized after bending and threading for full coverage
  • Rolled metric thread for smooth nut running and reliable torque
  • Parallel legs keep the clamp seated under vibration and wind load
  • Two hex nuts included, so no separate fastener order is needed

Typical Applications

  • Fixing wooden or concrete crossarms to distribution poles
  • Mounting brackets, cable trays and distribution boxes on poles
  • Clamping pole bands and stay hardware
  • General outdoor mechanical fixing in overhead line construction

Send the member width, thread size, leg length and quantity for a quotation. View all hot-dip galvanized iron fittings →
