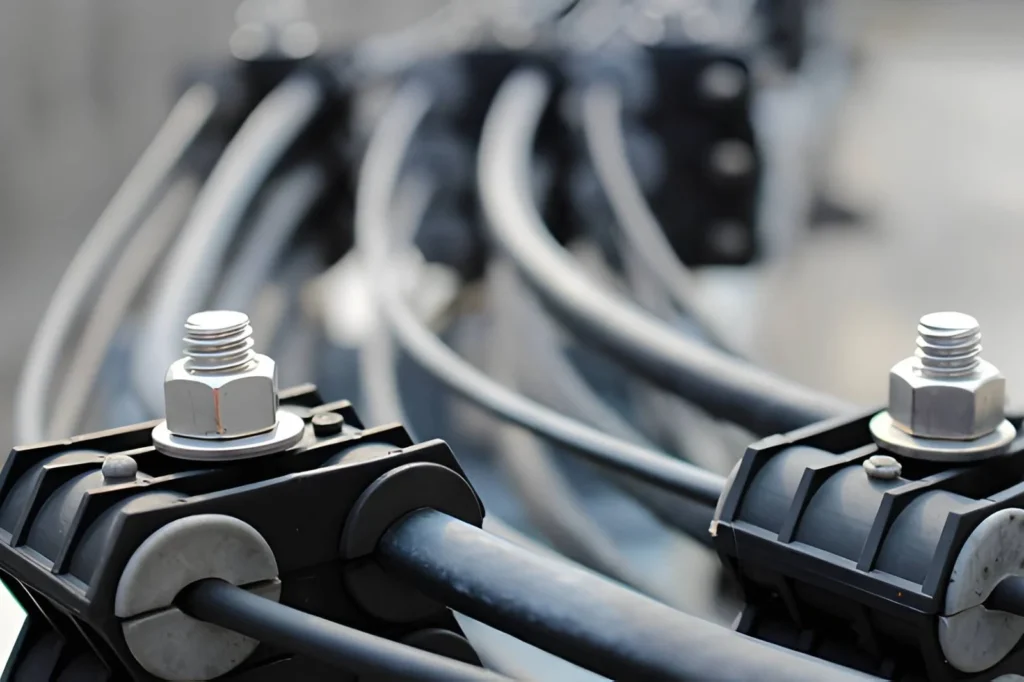

Insulation Piercing Connector IPC for ABC Cable Waterproof Durable

Introduction to GGLDF Insulation Piercing Connectors

GGLDF insulation piercing connectors (IPC) are essential pole line hardware designed to meet the high demands of modern aerial bundled cable (ABC) networks. Built to simplify and enhance electrical connections, these insulation piercing clamps enable quick, reliable tap-offs and service connections without stripping cables. As a trusted manufacturer specializing in pole line hardware, GGLDF delivers IPC connector electrical solutions known for superior performance, durability, and safety.

Our insulation piercing connectors provide a vital interface in ABC cable systems, ensuring secure, low-resistance electrical contact while preserving the cable’s insulation integrity. With GGLDF’s deep expertise and commitment to quality, contractors and utility engineers can confidently rely on our IPC products to achieve faster installations, reduce labor costs, and maintain compliance with international standards. Whether for new builds or retrofits, GGLDF insulation piercing connectors represent the backbone of efficient, long-lasting overhead line infrastructure worldwide.

What Is an Insulation Piercing Connector (IPC)?

An Insulation Piercing Connector (IPC) is an advanced electrical clamp designed to connect cables without stripping off the insulation. Also known as an insulation-piercing clamp or piercing connector electrical, it works by piercing through the cable’s insulation to establish a secure, reliable electrical contact.

Core Technology:

• The IPC uses sharp metal teeth inside the clamp that cut through insulation when tightened.
• This creates a solid electrical connection without damaging the conductor.
• It eliminates the need to strip, crimp, or tape the cables manually.

IPC vs. Traditional Connectors

This makes the IPC connector electrical perfect for quick, safe connections in aerial bundled cable tap connectors and overhead line insulation piercing connectors. It’s especially valued in power distribution where speed and reliability matter.

Key Features and Technical Advantages of GGLDF Insulation Piercing Connectors

GGLDF insulation piercing connectors (IPC) are built for real-world demands, combining smart design and durable materials to deliver reliable electrical connections across a variety of ABC cable installations.

Versatile Range-Taking Design

• Fits multiple conductor sizes, reducing the need for different connectors
• Supports both small and large cables, simplifying inventory and installation

Waterproof Sealing and UV-Resistant Materials

• IP-rated seals protect against water ingress and contaminants
• UV-resistant plastics ensure longevity under harsh sunlight without cracking or fading

Shear-Head Bolt System

• Ensures consistent torque and optimal contact pressure every time
• Eliminates guesswork for installers, guaranteeing a secure, low-resistance connection

Dual Aluminum/Copper Compatibility

• Works seamlessly with both Al and Cu conductors without compromising performance
• Low electrical resistance for energy-efficient power distribution

Durability Under Extreme Conditions

• Designed to withstand mechanical stresses like vibration and shock
• Performs reliably in extreme temperatures and adverse weather often encountered in overhead line applications

These features make GGLDF’s IPC connector electrical a top choice for contractors and utilities looking to ensure performance and longevity in their ABC cable networks.

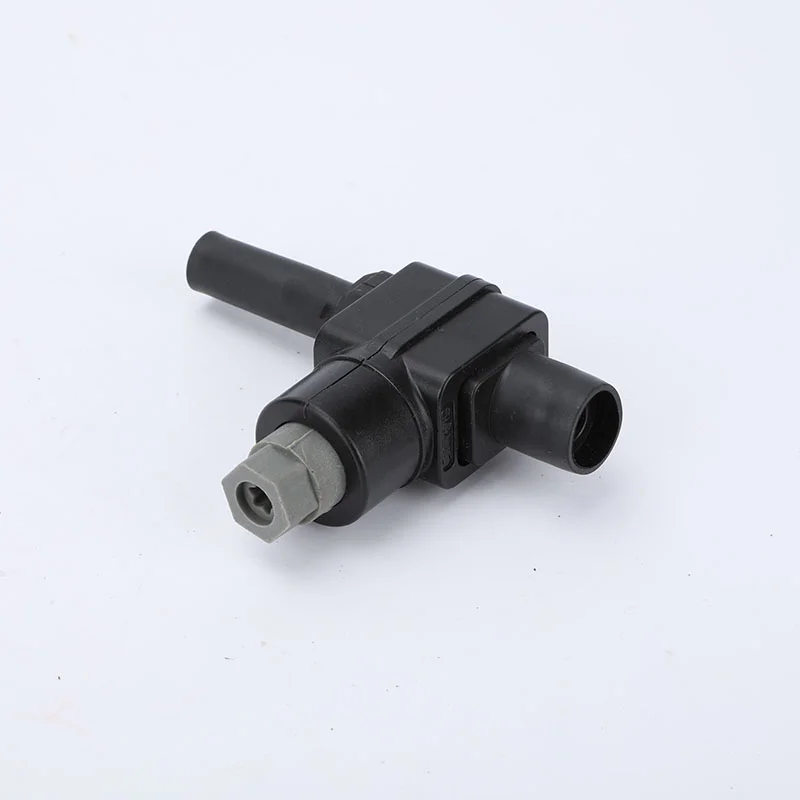

For similar high-quality pole line hardware, check out the TTD18F insulating piercing clamp series designed to complement these connectors perfectly.

Detailed Specifications of GGLDF Insulation Piercing Connectors

GGLDF insulation piercing connectors (IPCs) come with a broad range of options to fit various conductor sizes and applications. Each model features a defined conductor range, specific bolt count, and electrical ratings to meet the needs of modern ABC cable networks.

Key Specifications Overview

These insulation piercing clamps are designed with multiple bolts for secure connections and utilize shear-head bolts ensuring consistent torque and contact pressure.

International Standards Compliance

GGLDF IPC connectors meet or exceed industry standards such as:

• NFC (Norme Française de la Construction) for electrical connections
• EN 50483-4, which focuses on ABC insulation piercing connectors
• ANSI C119.4 standard for connectors used on overhead lines

Adherence to these standards guarantees:

• Reliable electrical performance
• Mechanical durability under harsh conditions
• Safety and quality assurance during field installation

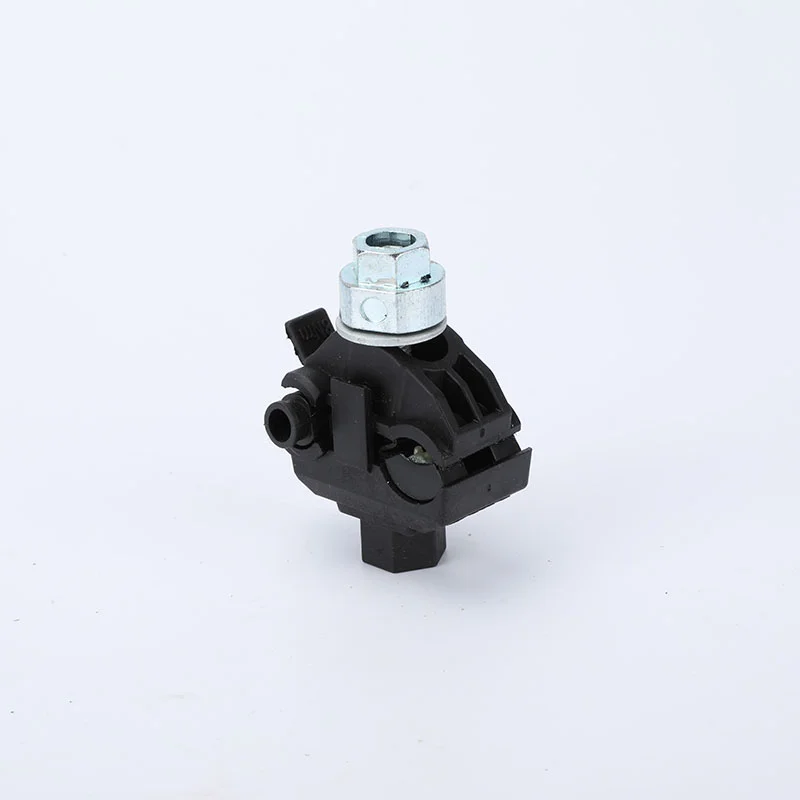

For detailed model specs including insulation piercing clamp series options, check out GGLDF’s dedicated CDP-70 insulating piercing clamp series page, showcasing comprehensive technical data and compatibility charts.

Applications in Power Distribution

Insulation piercing connectors (IPC) are mainly used in low voltage (LV) aerial bundled cable (ABC) systems to create reliable service taps and branch connections without needing to strip the cable insulation. This makes them ideal for quick, safe, and efficient connections on live cables.

Beyond residential and commercial LV networks, IPCs are widely applied in:

• Street lighting: Ensuring dependable electrical taps for lighting poles without interrupting the main supply.
• Rural power grids: Facilitating robust connections in areas with challenging environmental conditions.
• Urban retrofits: Enabling straightforward upgrades or network expansions without extensive cable replacement.
• Industrial connections: Providing durable, low-resistance contacts suited for heavy electrical loads in factories and plants.

GGLDF’s insulation piercing clamp technology supports these varied uses, maintaining strong, waterproof, and UV-resistant connections critical to overhead line infrastructure. For added reliability, these connectors work well alongside other components like pre-insulated terminals and copper-aluminum connecting terminals, enhancing overall system integrity. Explore complementary products such as the pre-insulated terminal CPTAU for fixed cable connection and the copper-aluminum connecting terminal OTD for cable connection to build a complete pole line hardware solution.

Installation Process and Best Practices for Insulation Piercing Connectors

Installing a GGLDF insulation piercing connector (IPC) is straightforward but requires care to ensure safety and a reliable electrical connection. Here’s a simple step-by-step guide with best practices:

Step-by-step Installation:

1. Prepare Tools and Equipment:
   • Insulation piercing clamp (IPC connector electrical) suitable for your conductor size
   • Torque wrench calibrated for the connector’s specified torque value
   • Screwdriver or ratchet for bolt tightening
   • Personal protective equipment (PPE), including insulated gloves and safety glasses
2. Safety Protocols:
   • Always de-energize the line if possible before installation
   • If working live-line, use insulated tools and follow strict safety procedures
   • Confirm that all personnel are trained in live electrical work protocols
   • Verify the work area is clear and well marked to prevent unauthorized access
3. Position the IPC:
   • Align the piercing connector for ABC cable or low voltage cables onto the main conductor without stripping insulation
   • Ensure the conductor fits within the required range according to the connector’s specification
4. Tighten the Shear-Head Bolt:
   • Use the torque wrench to tighten the bolts to the manufacturer’s recommended torque
   • The shear-head bolt system ensures consistent torque and proper insulation piercing without damaging the conductor
   • Tighten until the bolt head shears off, confirming optimal contact pressure
5. Sealing and Final Checks:
   • Confirm the waterproof piercing clamp is properly sealed with its UV-resistant materials to protect against weather
   • Check that the connector is secure and there’s no movement in the connection
   • Test the electrical continuity and resistance to ensure low-resistance contact

Live-Line Considerations:

• When working on energized ABC insulation piercing connectors, strictly follow safety standards and regulations
• Use insulated tools designed for live-line work and maintain safe distances
• Always have a qualified team and emergency procedures in place

Following these installation steps with GGLDF’s IPC ensures reliable, durable connections that stand the test of time and harsh environments. For additional line hardware like torque terminals, check the detailed options available at GGLDF’s mechanical torque terminal BLMT products.

Benefits for Contractors and Utilities

Using GGLDF insulation piercing connectors (IPC connector electrical) brings clear benefits to contractors and utility companies. Here’s why they’re a smart choice:

• Reduced labor time and project costs No need to strip cables or apply complex crimps means faster installation. This lowers man-hours and reduces the risk of mistakes—saving money on every job.
• Enhanced safety and minimized cable damage The insulation piercing clamp design avoids cable stripping, keeping conductors intact and lowering the chance of faults or accidental cuts during installation.
• Long-term reliability and lower maintenance Made with waterproof materials and a shear-head bolt system, these IPCs ensure consistent pressure and protection against weather and vibration. This means fewer service calls and longer intervals between maintenance.

For those working with varied conductor types, GGLDF’s dual-rated insulation piercing connectors are ideal since they fit both aluminum and copper cables while maintaining low resistance.

Choosing GGLDF IPCs can significantly enhance your overhead line projects by cutting costs and ramping up safety. For complementing cable connections, consider using GGLDF’s copper-aluminum connecting terminal OTD for an integrated solution.

Quality, Testing, and Manufacturer Assurance

At GGLDF, quality is built into every insulation piercing connector (IPC) from the ground up. Our manufacturing standards are strict, using premium materials designed to withstand harsh outdoor conditions. Each IPC connector electrical component goes through rigorous testing to ensure durability, low resistance, and waterproof sealing, which are critical for reliable performance in aerial bundled cable networks.

We apply comprehensive performance testing, simulating extreme weather and mechanical stress to confirm the insulation piercing clamp maintains consistent contact pressure and integrity over time. Our shear-head bolt system is tested for precise torque control, guaranteeing a safe and secure connection on every use.

Thanks to these standards and relentless quality checks, GGLDF’s insulation piercing connectors have proven field reliability across global power distribution projects. Choosing GGLDF means choosing a trusted pole line hardware manufacturer committed to long-lasting, low-maintenance solutions that protect your network investment.

Selecting the Right Insulation Piercing Connector Model

Choosing the right insulation piercing connector (IPC) is key to ensuring a safe, reliable, and efficient connection in your ABC cable network. Here’s a simple guide to help you pick the best GGLDF IPC model based on cable size, application, and environmental conditions.

Consider Cable Size and Type

• Conductor range: Make sure the IPC supports your cable’s conductor size — from small service taps to larger branch cables.
• Material compatibility: Select IPC connectors that support both aluminum and copper conductors (dual-rated insulation piercing connectors) for maximum flexibility.

Match Your Application

• Service connections: Use single or double bolt IPC clamps designed for low voltage IPC connector needs in residential or commercial areas.
• Branch taps and street lighting: Opt for models with multiple bolts and waterproof piercing clamps to withstand outdoor exposure.
• Industrial or rural grids: Choose heavy-duty shear bolt insulation piercing connectors engineered to endure mechanical stress and harsh environments.

Environmental Factors

• Weather resistance: Go for UV-resistant, waterproof piercing clamps for outdoor aerial bundled cable tap connector installations.
• Longevity needs: Consider models tested for extreme temperatures and corrosion resistance.

Quick Model Comparison

With this breakdown, you can select a GGLDF insulation piercing clamp that fits your project demands perfectly.

For specialized fixed cable connections complementing your IPC choices, you may want to explore our durable tinned copper terminal SC JGK or aluminum terminal double-hole DL, designed for reliable terminations.

This approach will help you streamline your overhead line hardware assembly for efficient, long-lasting results.

Frequently Asked Questions about Insulation Piercing Connectors

Here are some clear answers to common questions about the GGLDF insulation piercing connector (IPC) to help you decide if it fits your project needs.

Q: Can I use the same IPC connector electrical for both aluminum and copper cables?

A: Yes. GGLDF’s dual-rated insulation piercing connectors are designed to work with both Al and Cu conductors without compromising performance or safety.

Q: Do I need to strip the cable insulation before installation?

A: No stripping is needed. The insulation piercing clamp pierces through the cable’s insulation, creating a secure connection without the extra step of stripping or taping.

Q: Are these waterproof piercing clamps really watertight over time?

A: Absolutely. The IPC features durable waterproof sealing materials that resist moisture and UV exposure, ensuring long-lasting outdoor reliability.

Q: How many times can I reuse an insulation displacement connector?

A: Generally, these connectors are designed for one-time installation to maintain optimal contact pressure and electrical integrity.

Q: What tools do I need to install the shear bolt insulation piercing connector safely?

A: Use an appropriate torque wrench or driver set to apply the recommended torque values, making installation safe and consistent.

Q: Can these connectors handle harsh weather and mechanical stress?

A: Yes, GGLDF’s insulation piercing connectors are tested for extreme weather resistance and mechanical durability to suit a variety of overhead line environments.

If you need more technical details or model-specific info, feel free to contact GGLDF’s expert team for tailored advice.

Related Pole Line Hardware Solutions from GGLDF

To build a reliable and efficient overhead line system, GGLDF offers a range of complementary pole line hardware solutions that work hand in hand with our insulation piercing connector products. These include durable suspension clamps designed specifically for overhead lines and ADSS cable support, as well as high-strength tension clamps (dead-end clamps) that ensure secure cable anchoring in power distribution networks.

Using these products alongside our ABC insulation piercing connectors provides a complete, well-integrated system. For example, the durable suspension clamps help maintain proper cable spacing and tension, while the shear bolt insulation piercing connectors ensure consistent electrical contact without damaging the cables.

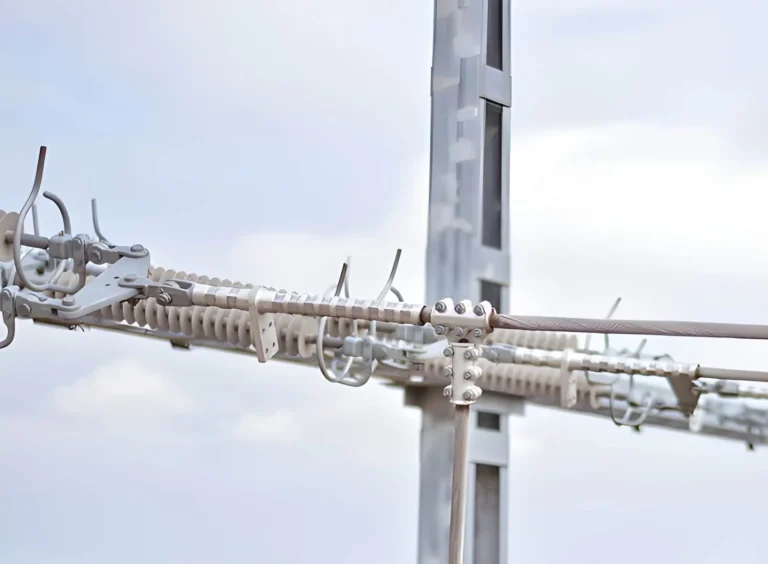

Explore GGLDF’s specialized range like our durable suspension clamps for overhead lines and tension clamps for power lines to complement your projects. Together, these pole line hardware solutions enable contractors and utilities to achieve safe, long-lasting infrastructure with minimal maintenance.

Contact GGLDF for Expert Support and Quotes

When you’re ready to upgrade your network with reliable insulation piercing connectors, GGLDF is here to help. As a leading pole line hardware manufacturer, we offer expert guidance tailored to your project needs and ensure access to high-quality IPC connector electrical solutions. Whether you require a piercing connector for ABC cable or a shear bolt insulation piercing connector, our team provides fast quotes and technical support worldwide.

Benefit from GGLDF’s strong manufacturing capabilities, proven quality, and comprehensive supply chain designed to serve contractors and utilities across the globe. Reach out today to discuss your cable sizes, environment conditions, or specific applications, and let us recommend the perfect ABC insulation piercing connector for your system.

For specialized pole line hardware and related products, explore our selection such as the CAPG B2 transformed copper-aluminum butt splicing clamp to complete your overhead line setup with confidence.

Contact GGLDF now and experience the difference of professional support combined with durable, efficient insulation piercing clamps worldwide.
